Product Description

The lock body is made of PA plastic and can withstand temperatures between -20 °C to120 ° C， PA lock body is resistant impact, UV, corrosion, heat and low temperature, Durable, light weight, Non–conductive.There are a total of 11 colors to choose from，other colors can be customized.The lock body can be laser printed，the label design on the lock body can be customized，You can also customize lock bodies with logos.

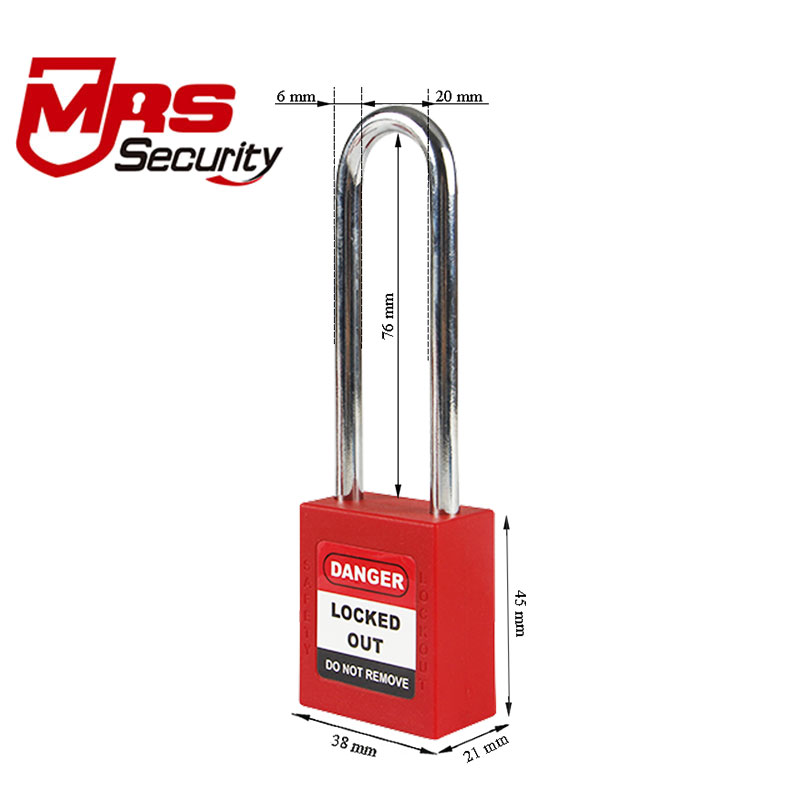

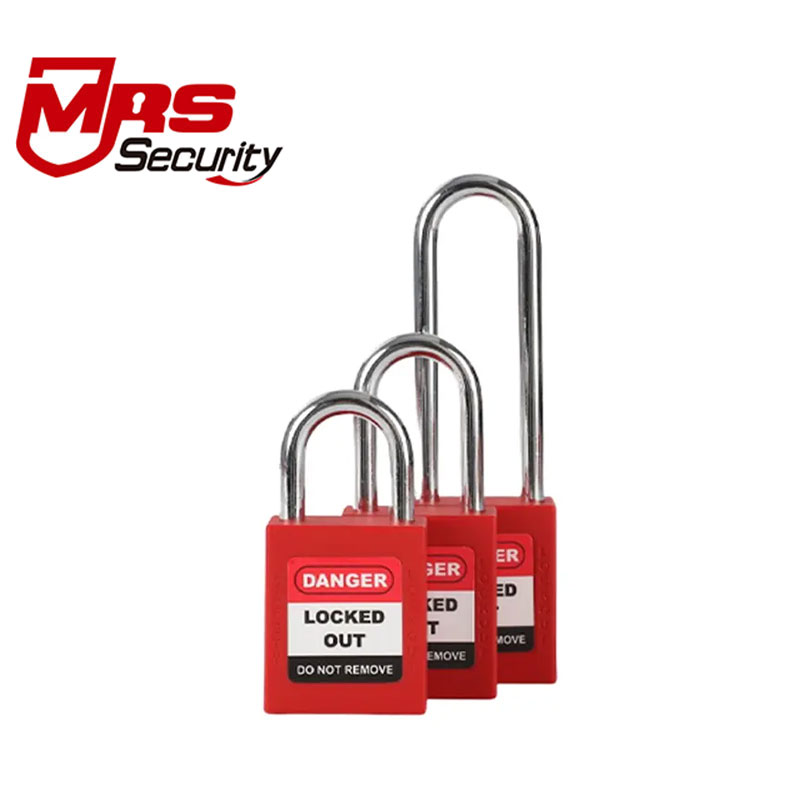

The lock shackle comes in three materials: steel, nylon, and 304 stainless steel. The surface of the metal lock beam has been chrome plated, with high hardness and strong wear resistance; Toughened nylon with the characteristics of heat resistance and chemical resistance; 304 stainless steel has excellent thermal expansion and insulation properties, and is resistant to corrosion, oxidation, and rust.The diameter of the padlock shackle is 6mm，Three sizes of lock beams are available for selection, while other sizes can be customized.

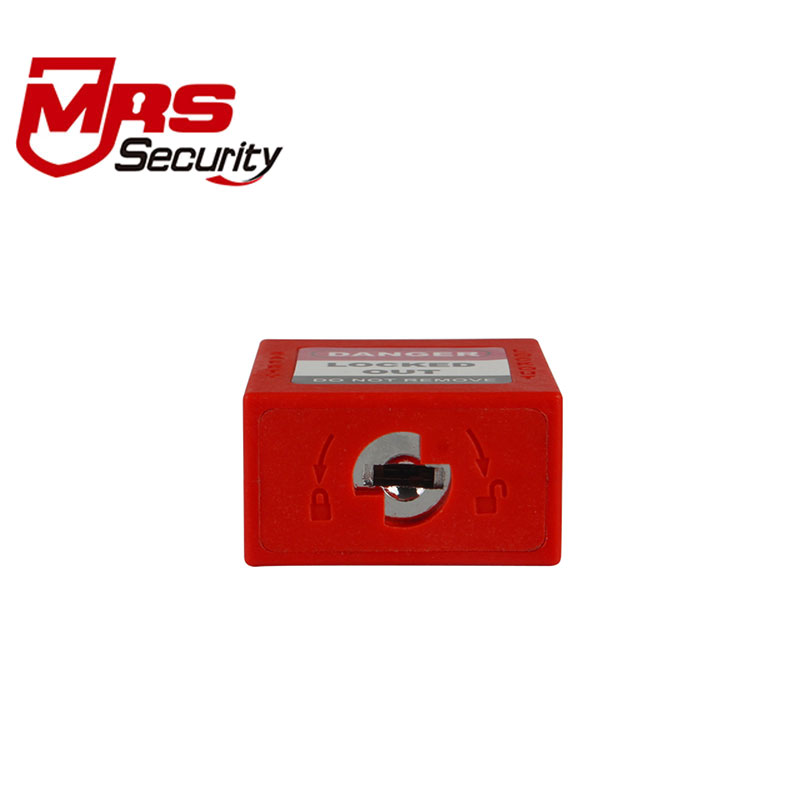

The lock cylinder includes copper lock core and zinc alloy lock core，can be used for a long time，lock cylinder is 12 pins，can combine over 100000pcs padlocks that can not be opened.

The key is made of copper chrome plated material, with a flat surface that is not easy to rust.The lock can be customized to wrap in nylon, and the color can also be customized.The key can be laser printed.

Highly secure, with key retention, the key cannot be removed in an unlocked state to prevent key loss.

Comply with OSHA standard: 1 employee = 1 padlock = 1 key.

Applicable

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.

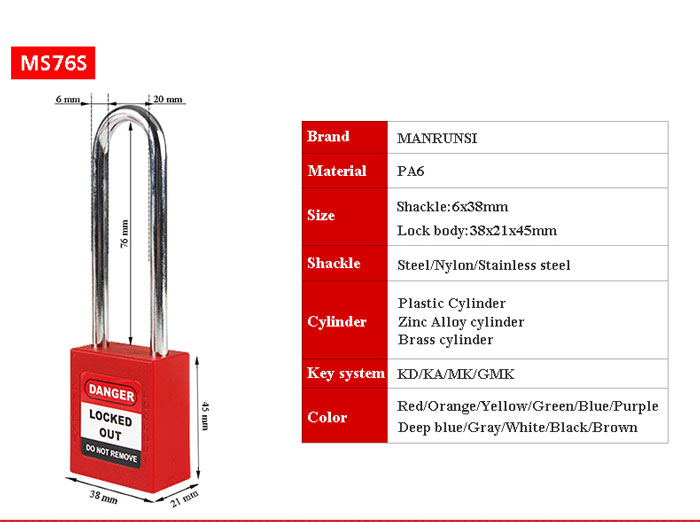

Technical Specifications
