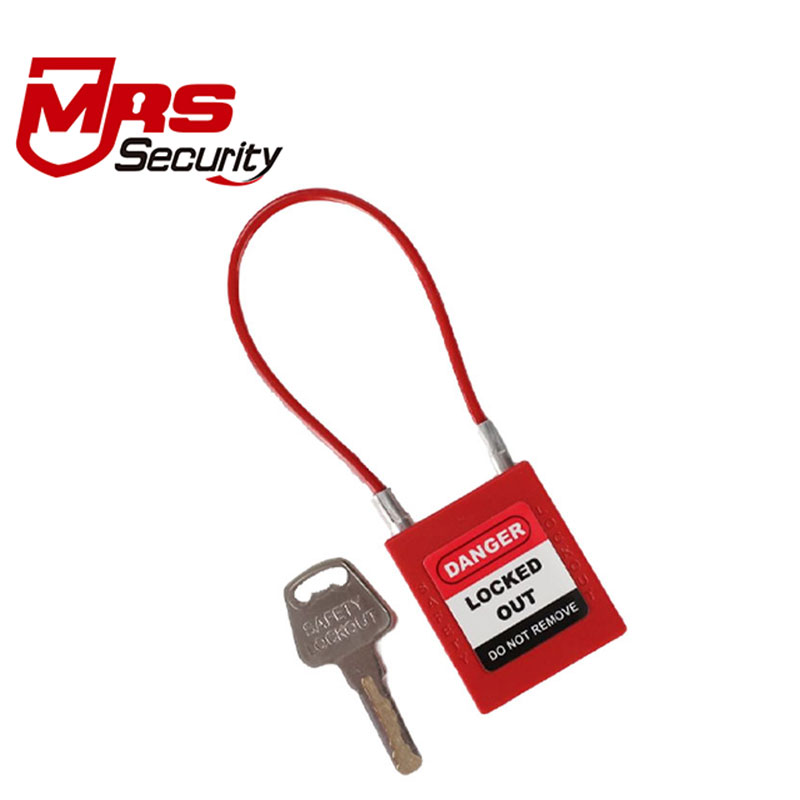

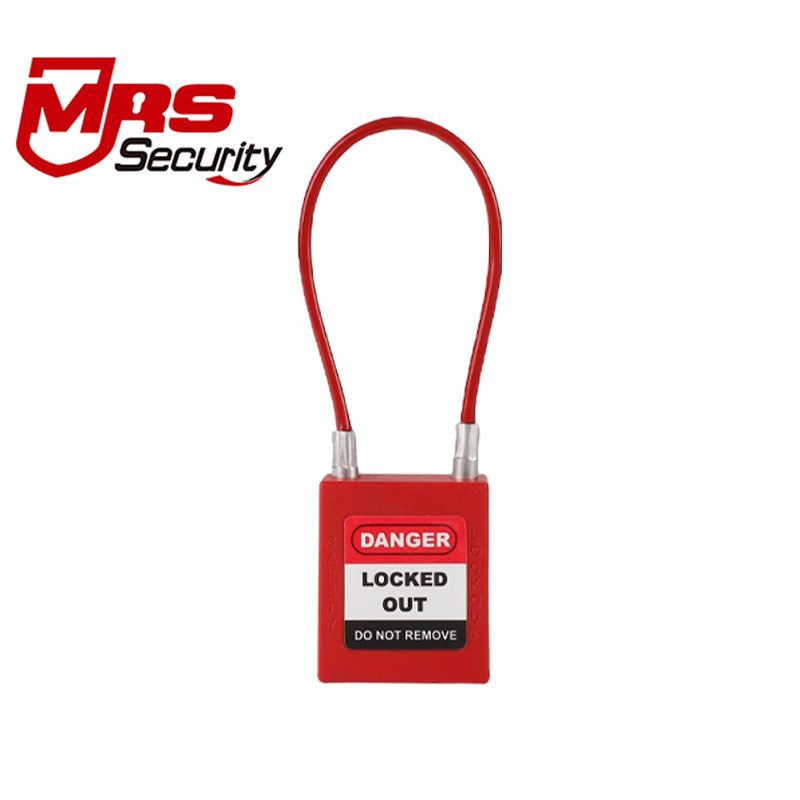

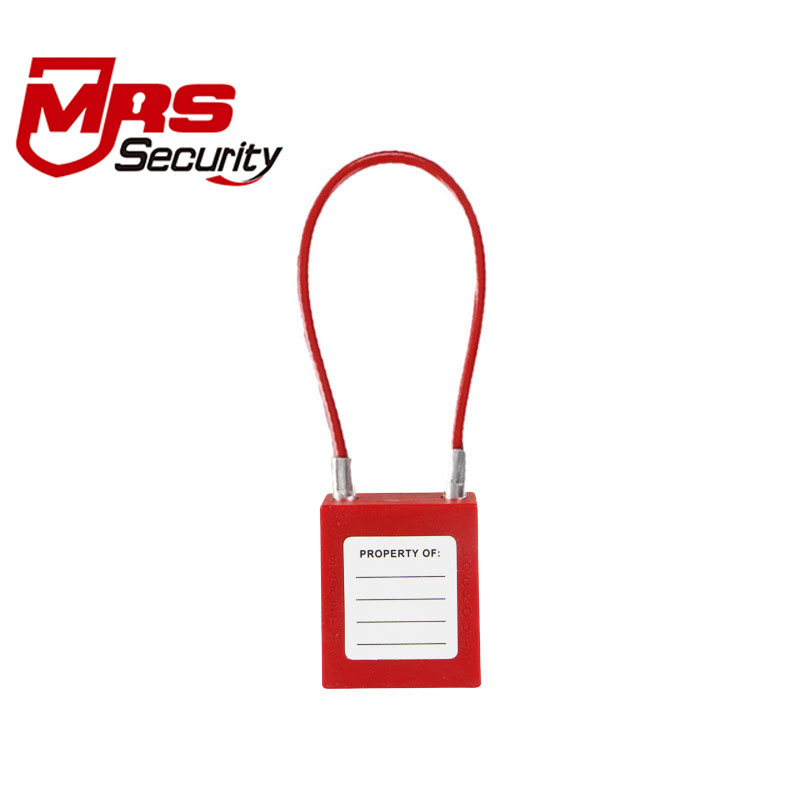

Product Description

The lock shackle adopts stainless steel cable, which is adjustable and can adapt to more occasions

The lock body is made of engineering plastic PA6

The diameter of the cable is 1.5mm,cable length 175mm

The key cannot be removed when the padlock is open

Compared to conventional padlocks, they are more flexible and versatile.

The lock body is made of PA plastic and can withstand temperatures between -20 °C to120 ° C， PA lock body is resistant impact, UV, corrosion, heat and low temperature, Durable, light weight, Non–conductive.There are a total of 11 colors to choose from，other colors can be customized.The lock body can be laser printed，the label design on the lock body can be customized，You can also customize lock bodies with logos.

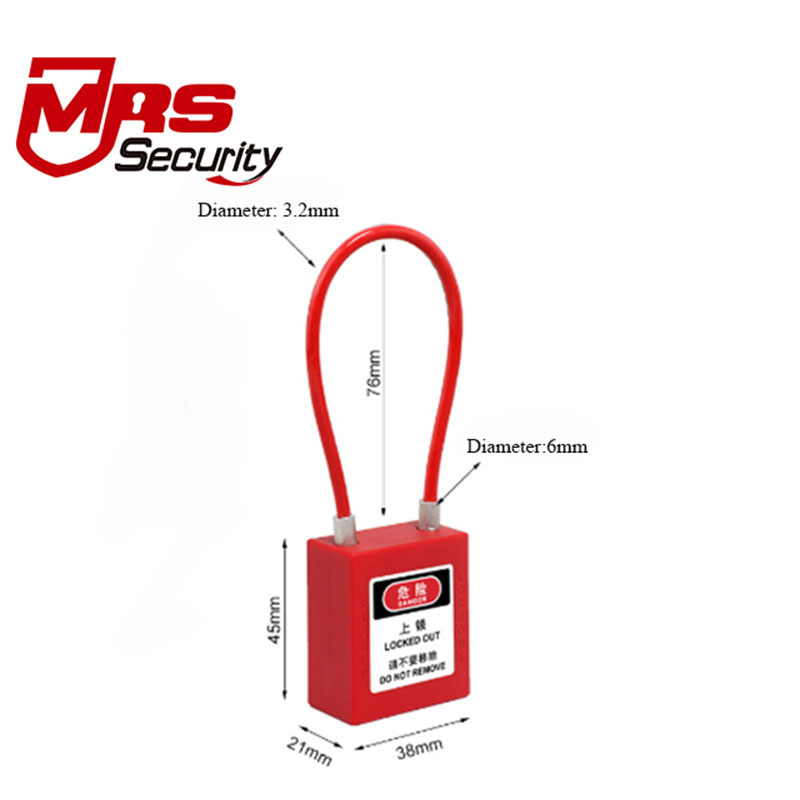

The cable is made of 304 stainless steel material, with a smooth surface that is not prone to scratches. It is resistant to low temperatures and has good insulation. At the same time, the surface has a rich chromium oxide film, which can withstand corrosion even if left in water for a long time. The default length of the cable is 175mm, which can be customized. The cable diameter is 1.5mm/3.2mm, and the metal interface diameter between the cable and the lock body is 4mm/6mm.

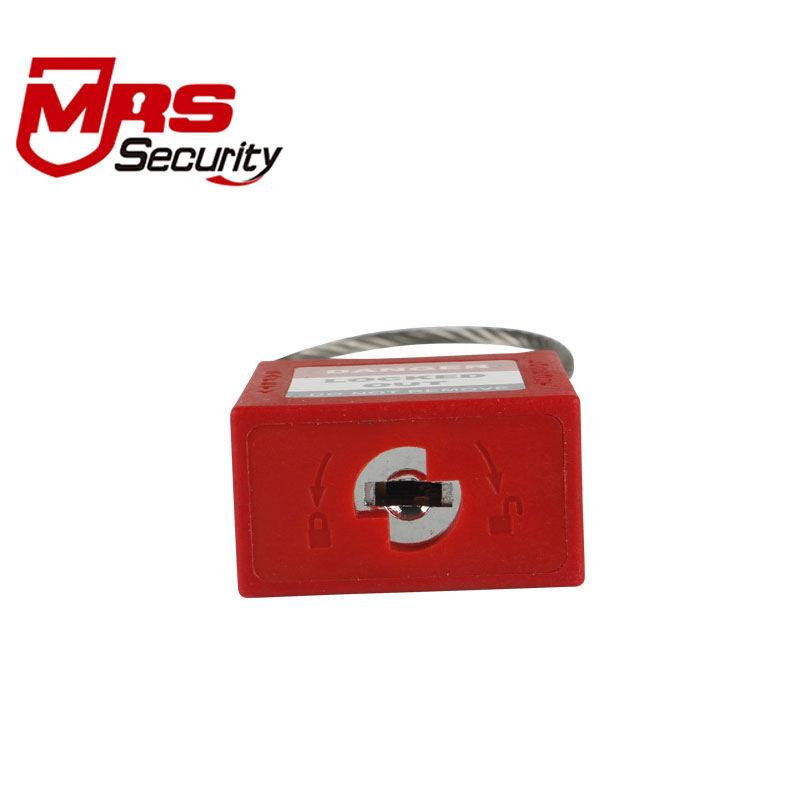

The lock cylinder includes copper lock core and zinc alloy lock core，can be used for a long time，lock cylinder is 12 pins，can combine over 100000pcs padlocks that can not be opened.

The key is made of copper chrome plated material, with a flat surface that is not easy to rust.The lock can be customized to wrap in nylon, and the color can also be customized.The key can be laser printed.

Highly secure, with key retention, the key cannot be removed in an unlocked state to prevent key loss.

Comply with OSHA standard: 1 employee = 1 padlock = 1 key.

Applicable

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.

Technical Specifications
