Product Description

Using engineering plastic PA6, it can withstand temperatures ranging from -20 ° C to 120 ° C. It is resistant to impact, UV radiation, corrosion, heat, low temperature, durability, lightweight, and non-conductive. The default color is yellow. If the quantity is large, other colors can be customized, and there are a total of 11 colors to choose from. The lock body can be laser printed, and the label design on the lock body can be customized, as well as the lock body with a logo.

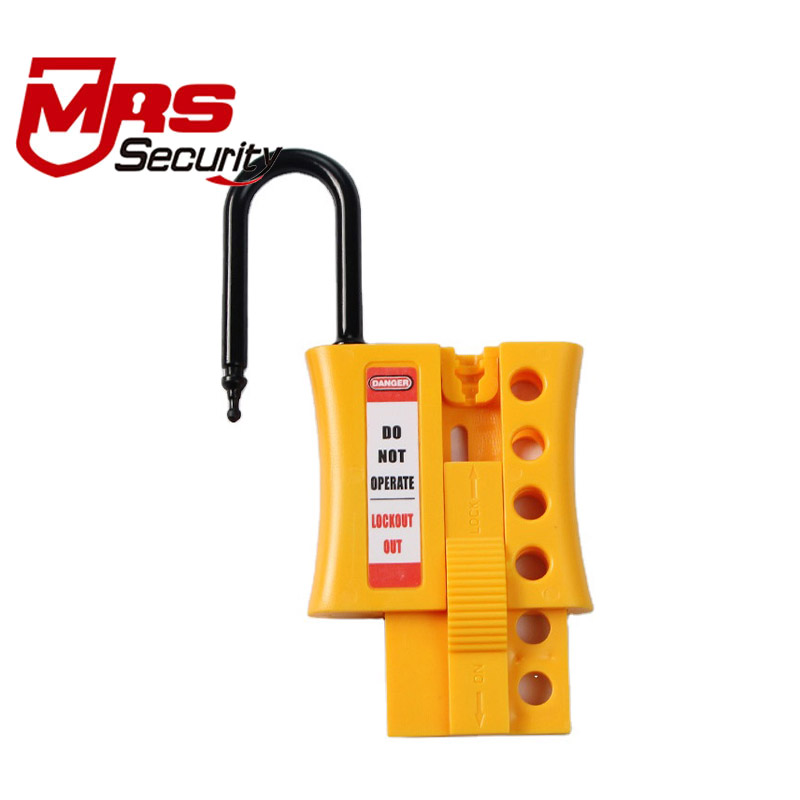

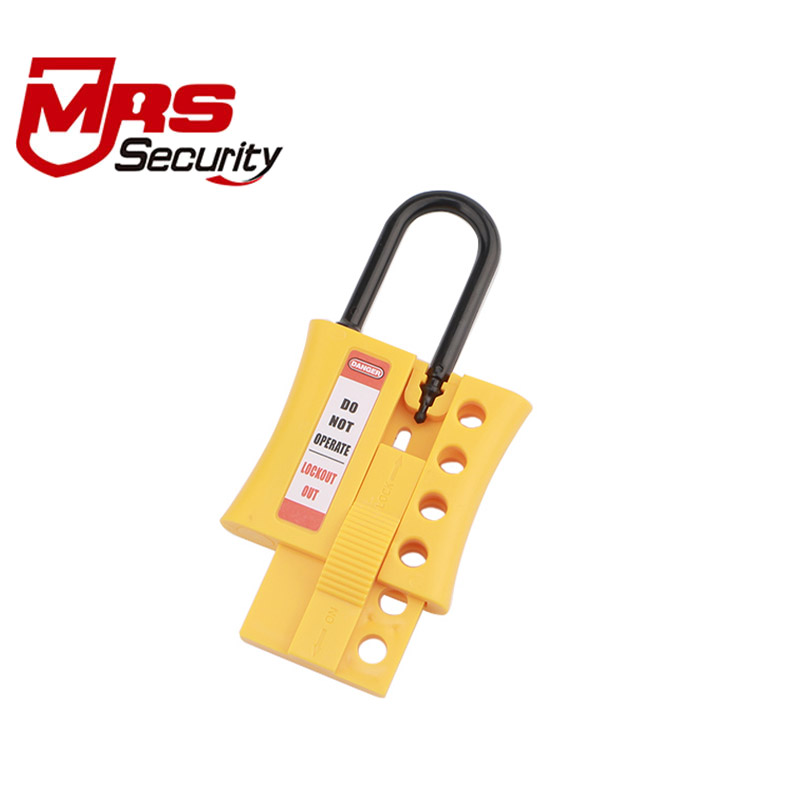

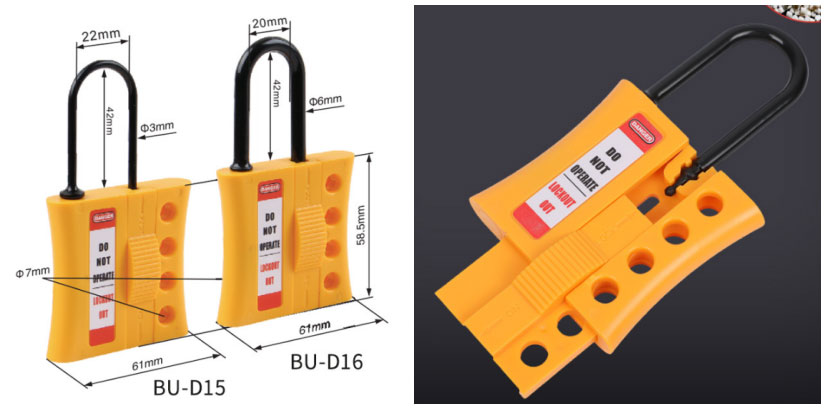

MDK05N: The diameter of the lock hook is 6mm, and there is a sliding block on the lock body that can be pushed. Pushing down means opening, and pushing up means fixing.

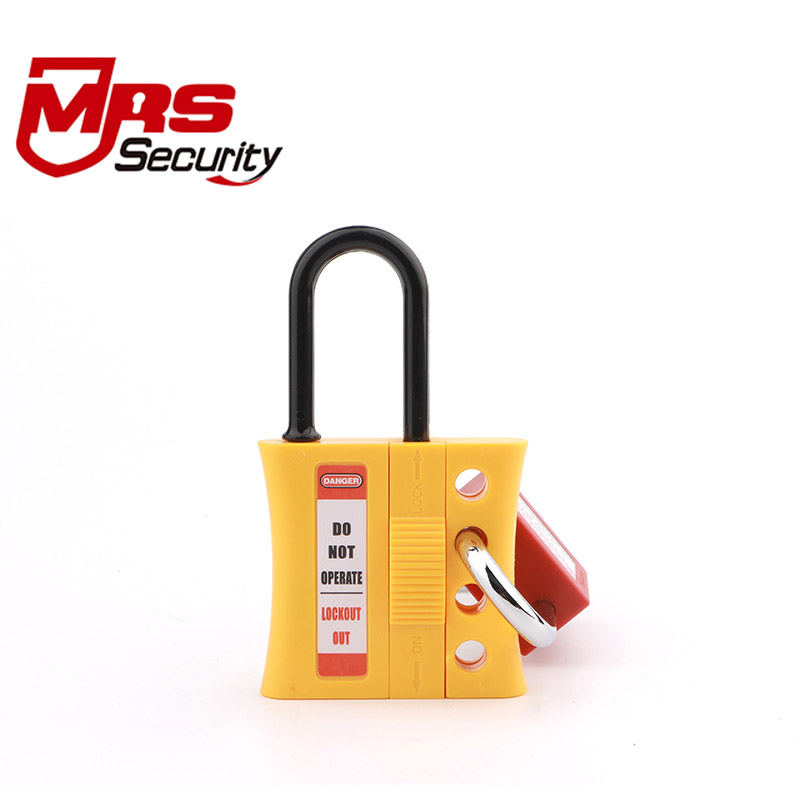

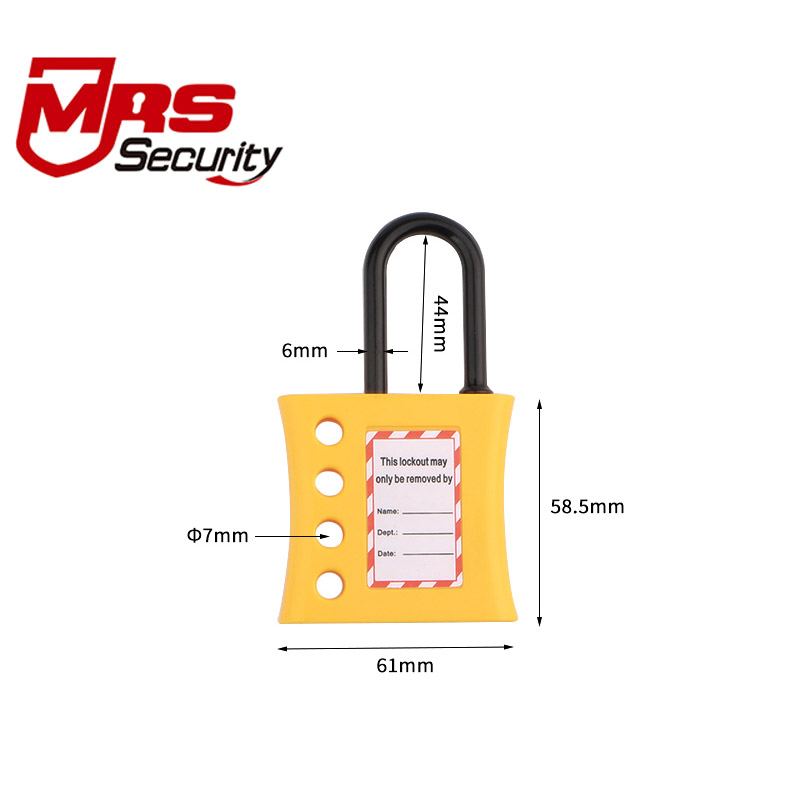

The diameter of the lock hole is 7mm, with a four hole design that can be hung with four padlocks, achieving the goal of joint management by multiple people

It is recommended to use it together with a padlock and safety sign to achieve  locking purposes, and to prevent misoperation.

Applicable

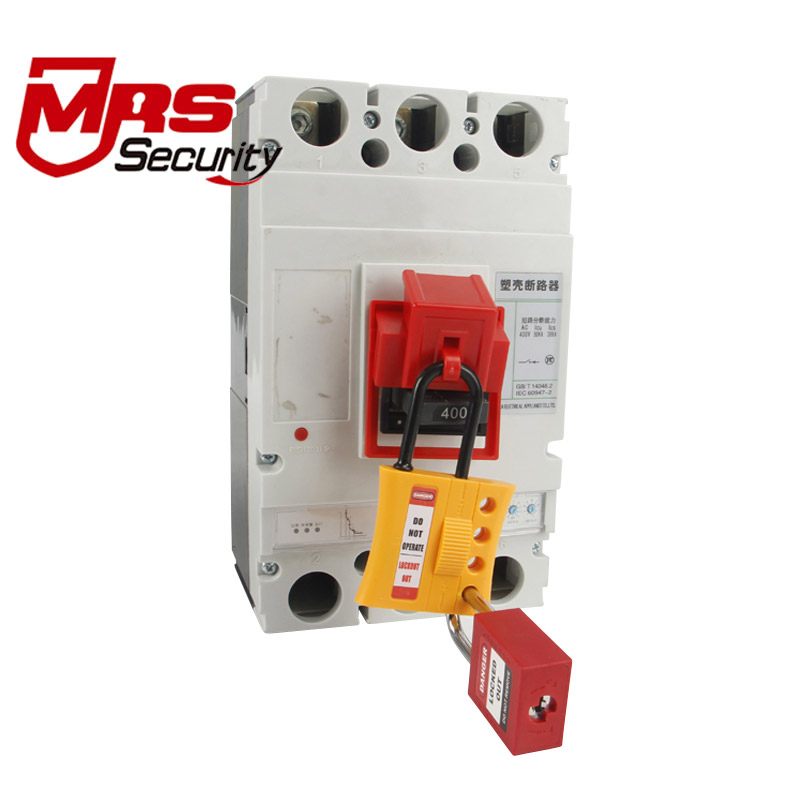

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.

Technical Specifications

Video
