Product Description

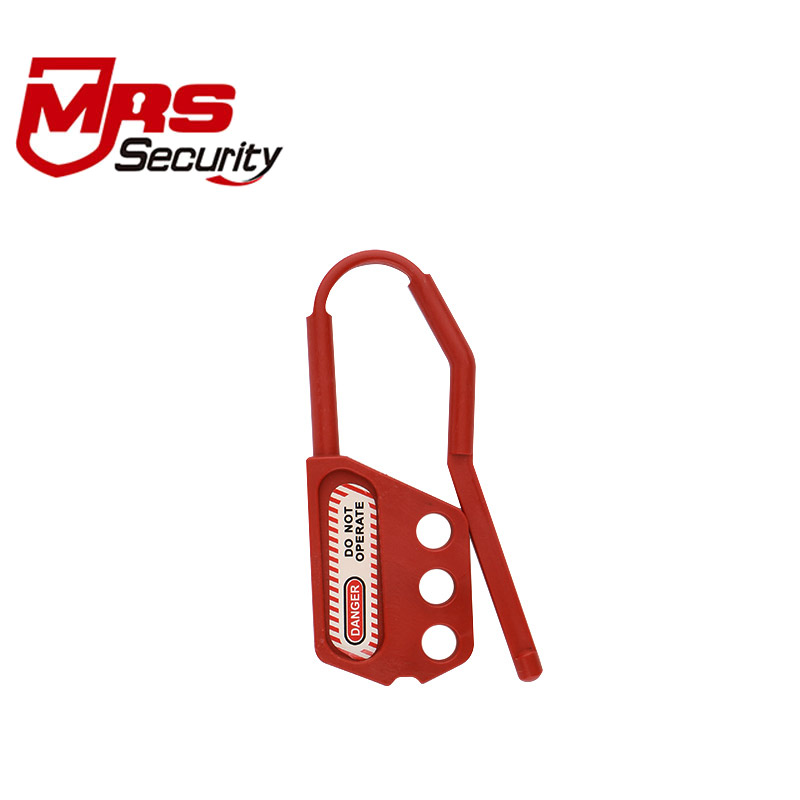

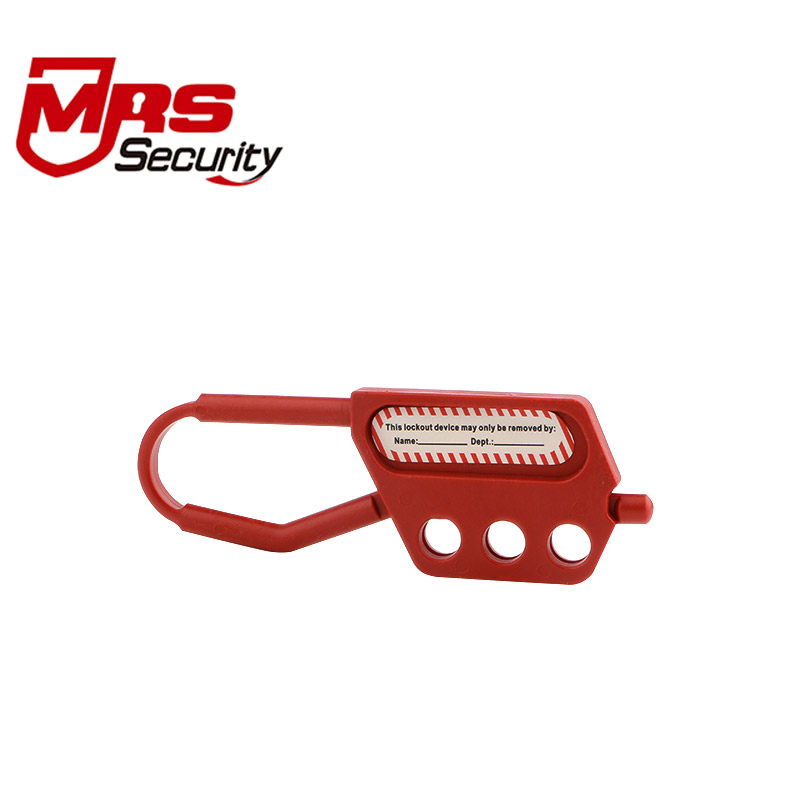

Using engineering plastic PA6, it can withstand temperatures ranging from -20 ° C to 120 ° C. It is resistant to impact, UV radiation, corrosion, heat, low temperature, durability, lightweight, and non-conductive. The default color is yellow. If the quantity is large, other colors can be customized, and there are a total of 11 colors to choose from. The lock body can be laser printed, and the label design on the lock body can be customized, as well as the lock body with a logo.

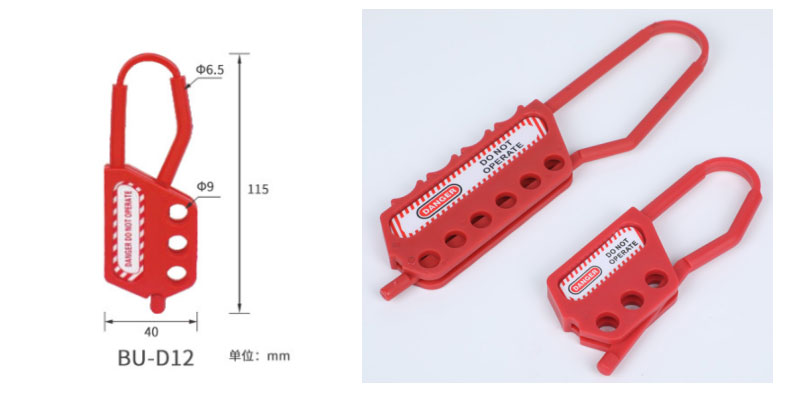

The thickness of the fine part of the lock hook is 3mm, and the diameter of the coarse part is 6.5mm. The lock hook is pulled or pushed in from the side of the lock body.

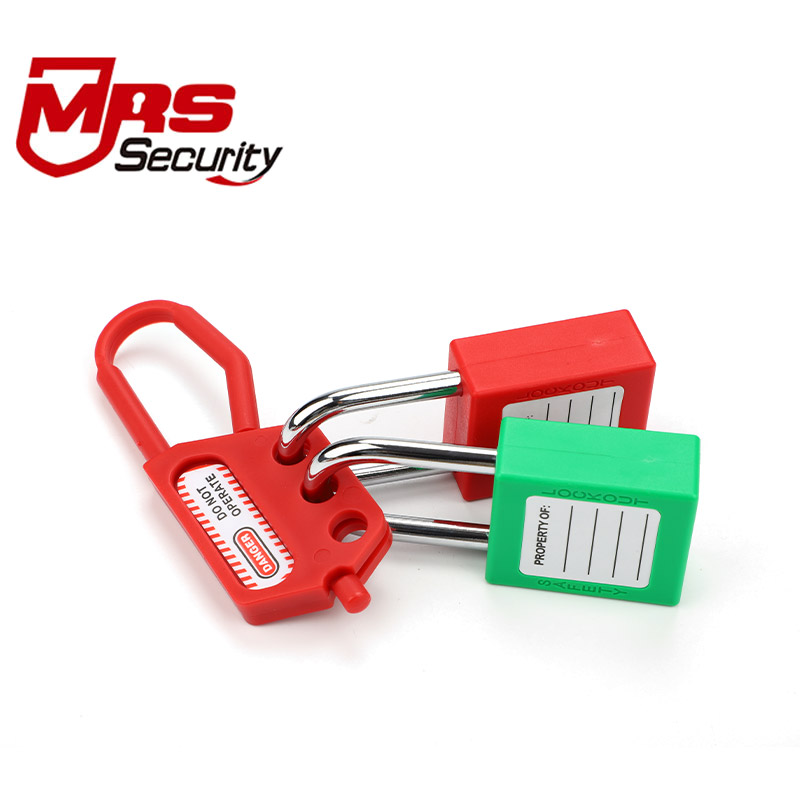

The diameter of the lock hole is 8.5mm, with a three hole design that can be hung with three padlocks, achieving the goal of joint management by multiple people

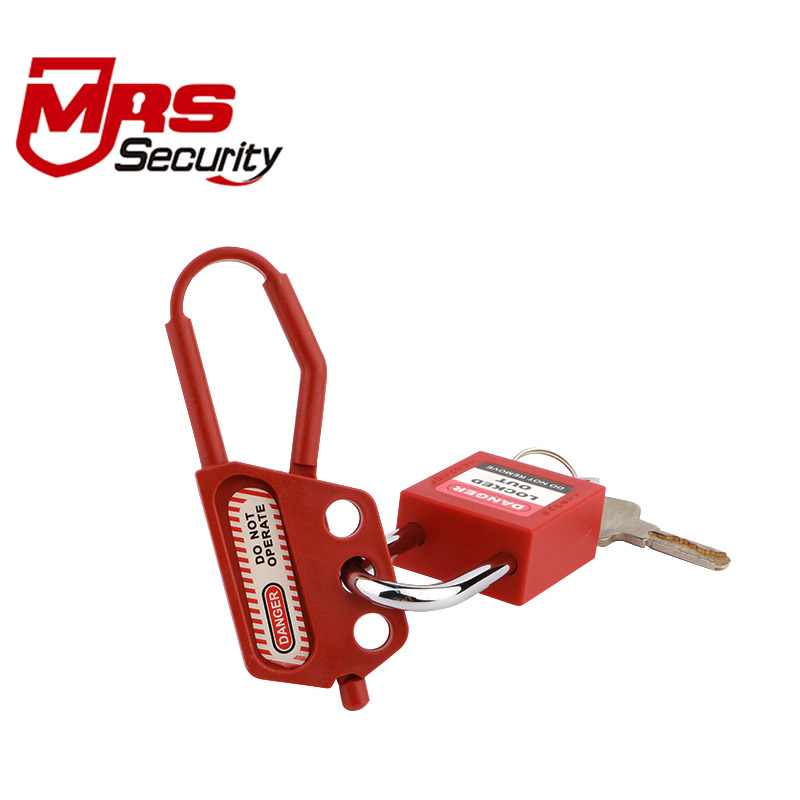

It is recommended to use it together with a padlock and safety sign to achieve  locking purposes, and to prevent misoperation.

Application scope

Safety locks are widely used in various transportation, light industry, and building materials; Metallurgy and non-ferrous metals; Food, manufacturing, papermaking; Petroleum and chemical industry; Energy, electricity, and other fields

Applicable

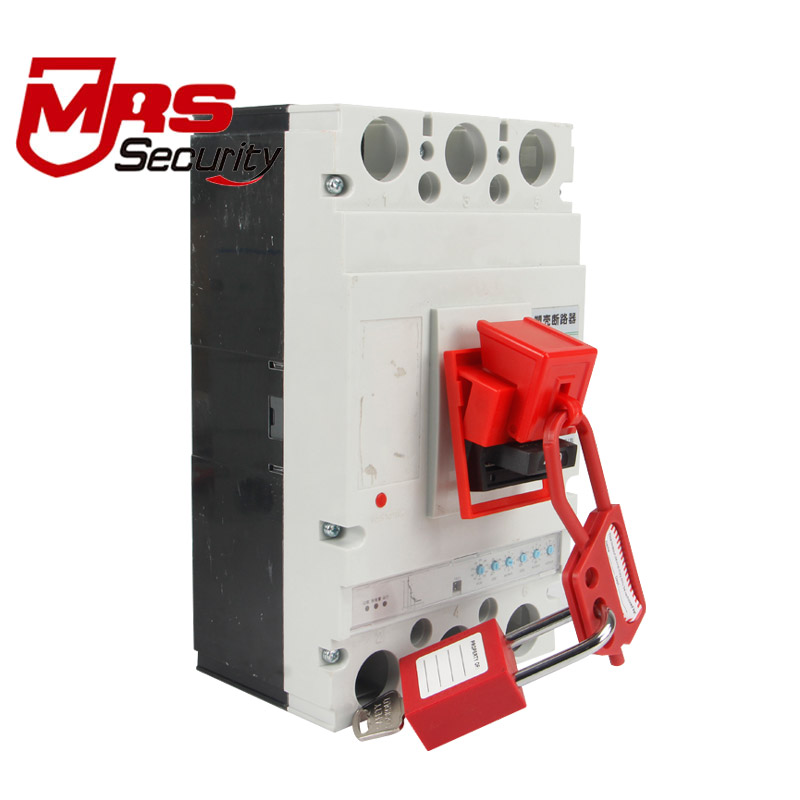

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.
