Product Description

Made of iron, the surface has been sprayed with plastic, and the surface is smooth. It has excellent corrosion resistance, UV resistance, impact resistance, and dirt resistance, and a long service life. The default color is red. If the quantity is large, other colors can be customized, and there are a total of 11 colors to choose from,. The lock body can be laser printed or customized with a logo.

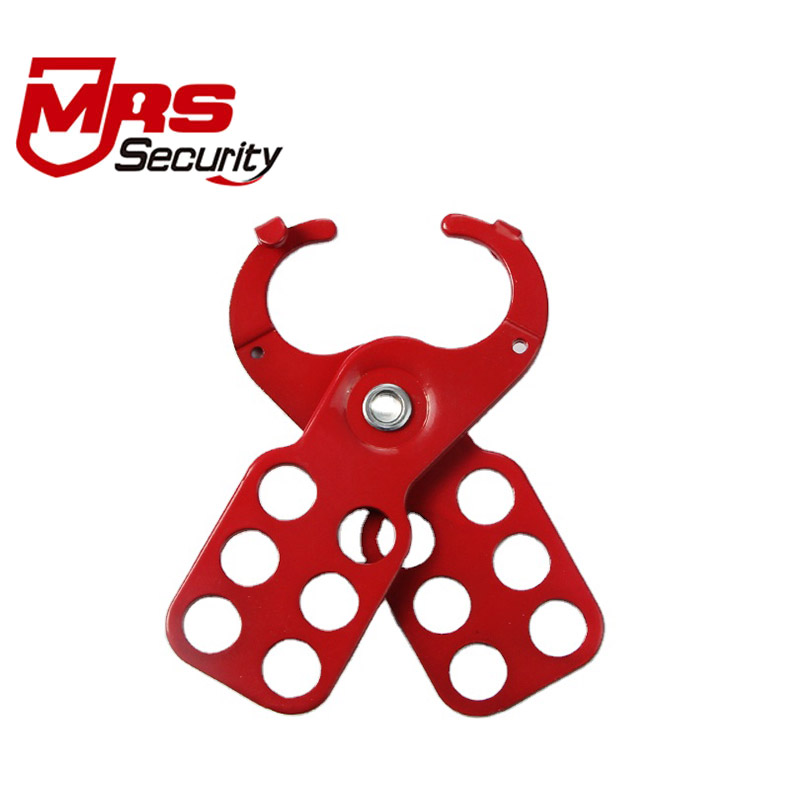

Compared to MK11, it has an additional locking buckle for the jaw to prevent it from being forcefully broken.

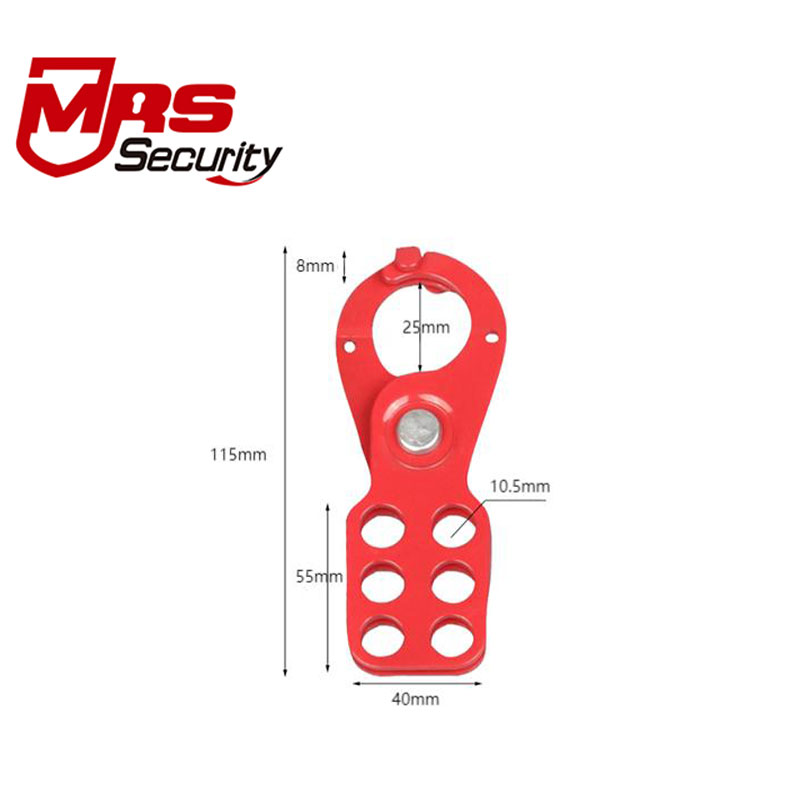

The diameter of the locking hook mouth of MDK11-H is 8mm, and the diameter of the locking hook is 25mm

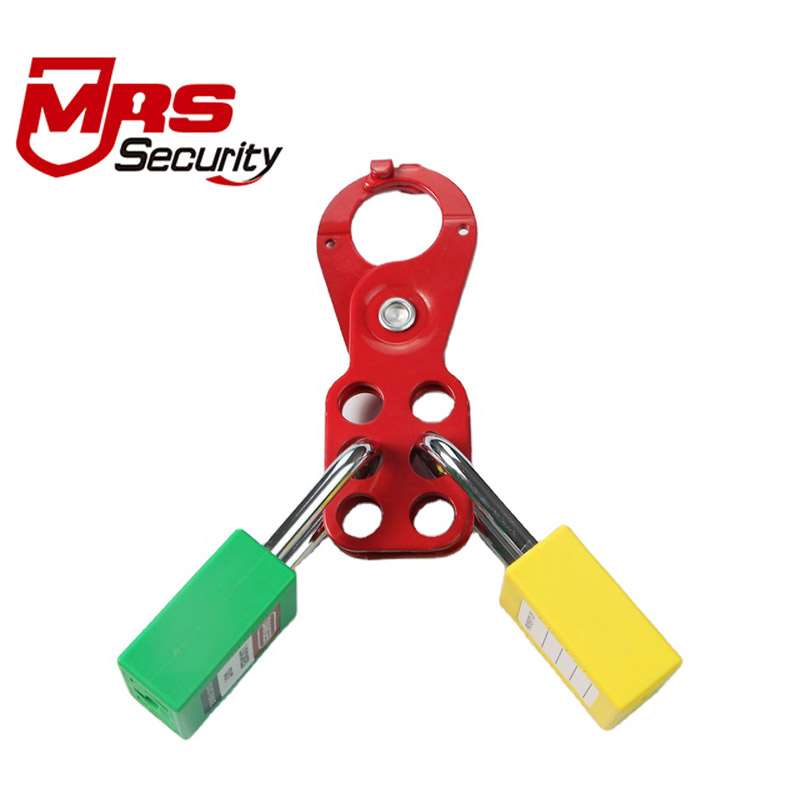

With a diameter of 12mm and a six hole design, it can be hung with six locks, achieving the goal of joint management by multiple people.

It is recommended to use it together with a padlock and safety sign to achieve  locking purposes, and to prevent misoperation.

Applicable

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.

Technical Specifications
