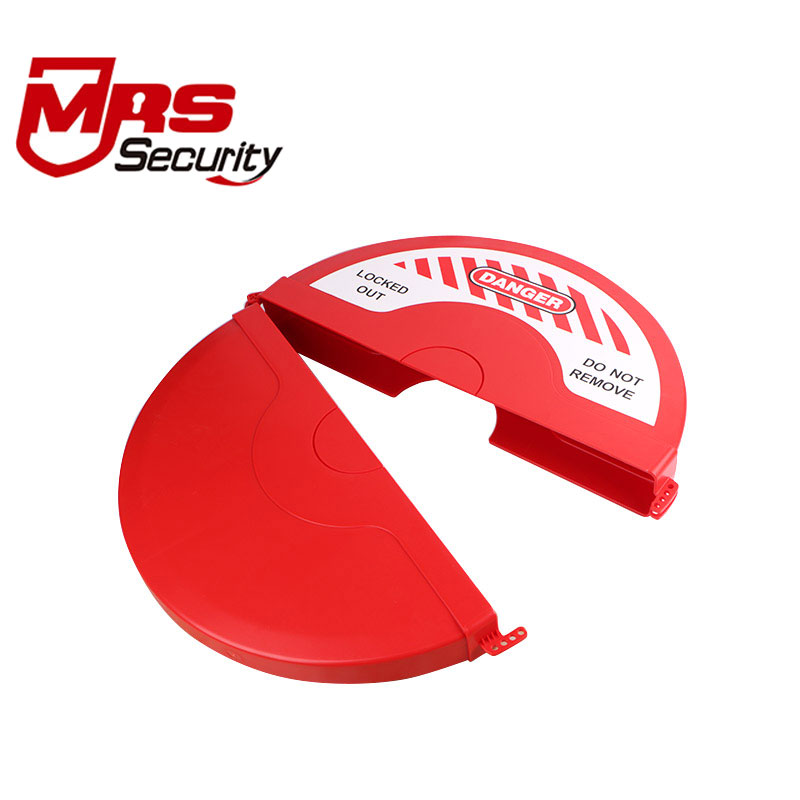

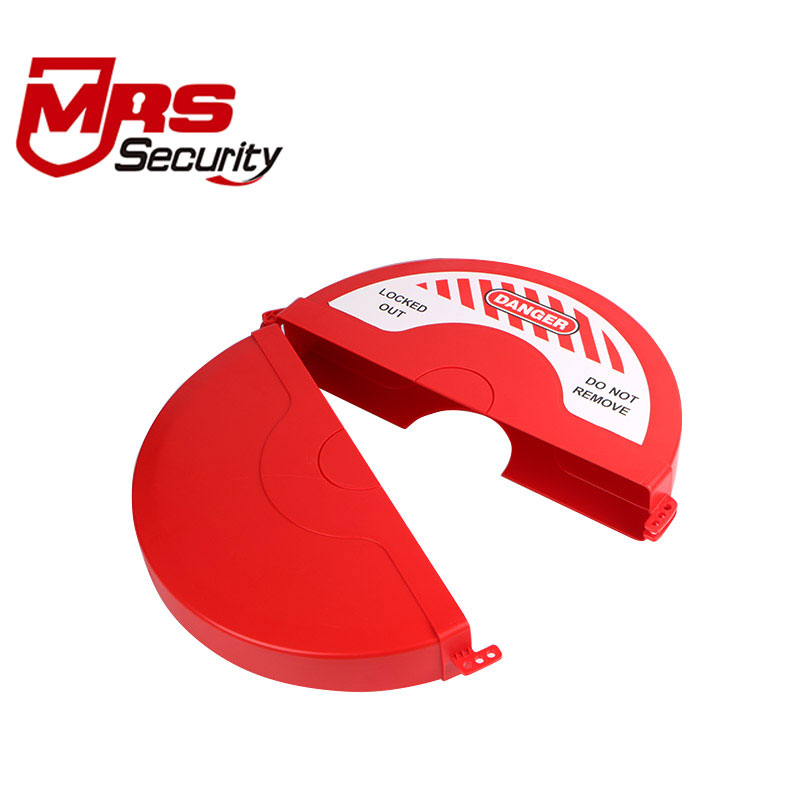

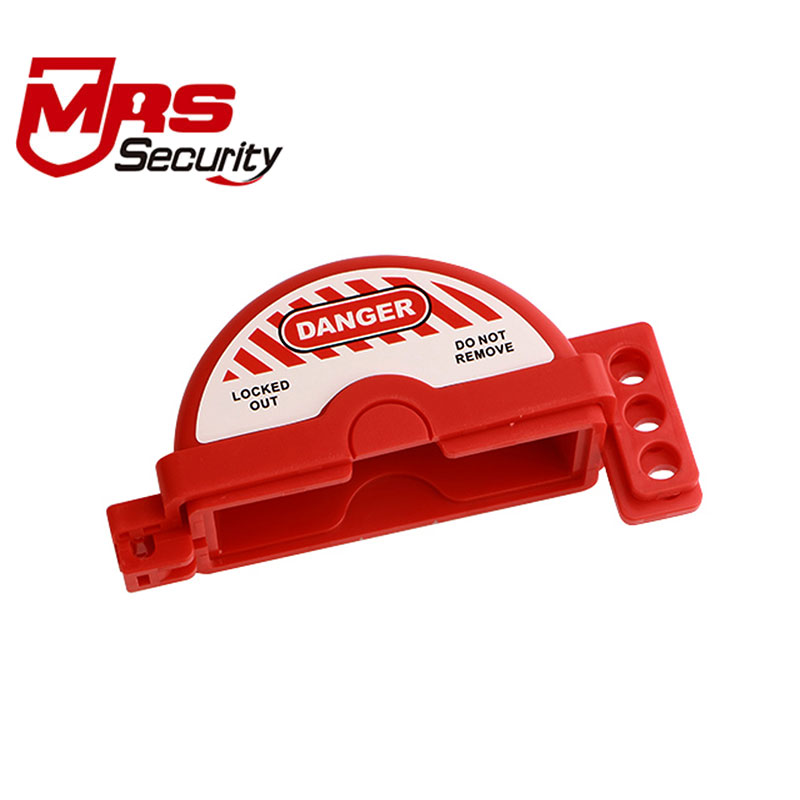

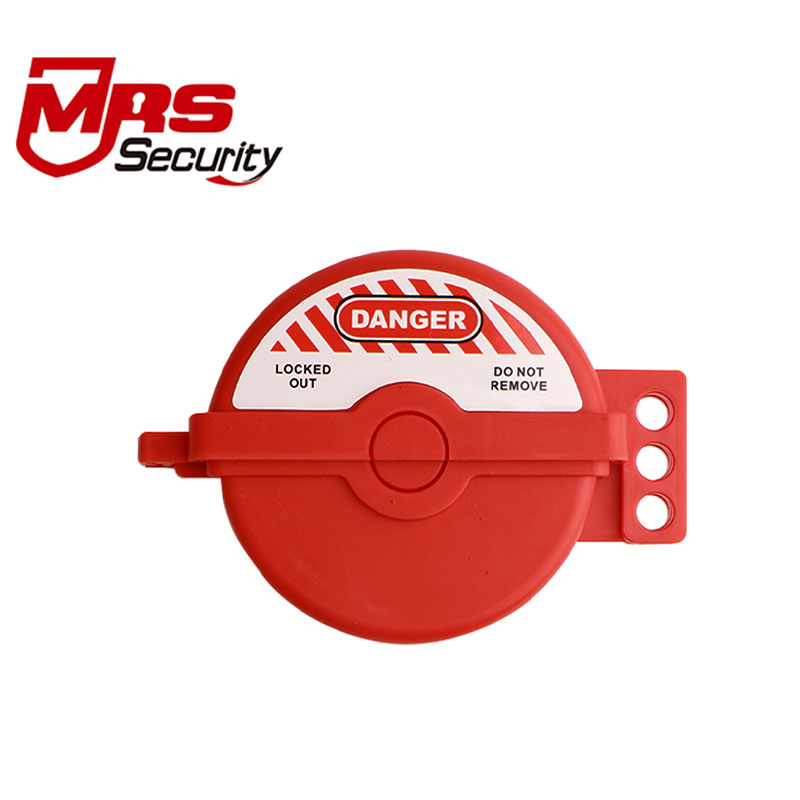

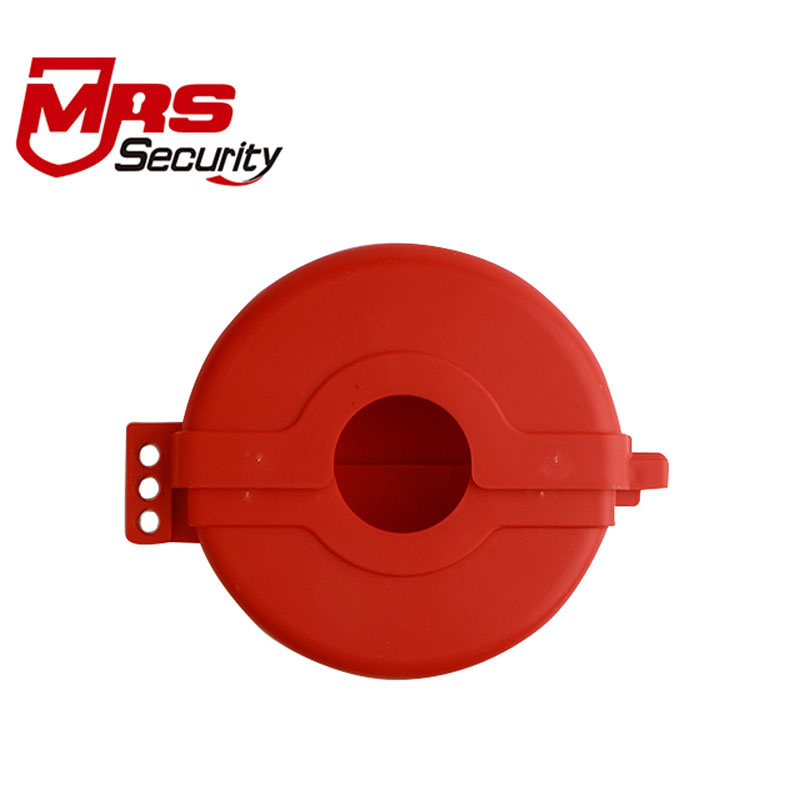

Safety Industry Standards Gate Valve Lockout MZF01-07N
FEATURES

Made of ABS

Seven different ball valve lockout sizes can lock gate valves with hand-wheel diameters ranging from 25mm to 635mm

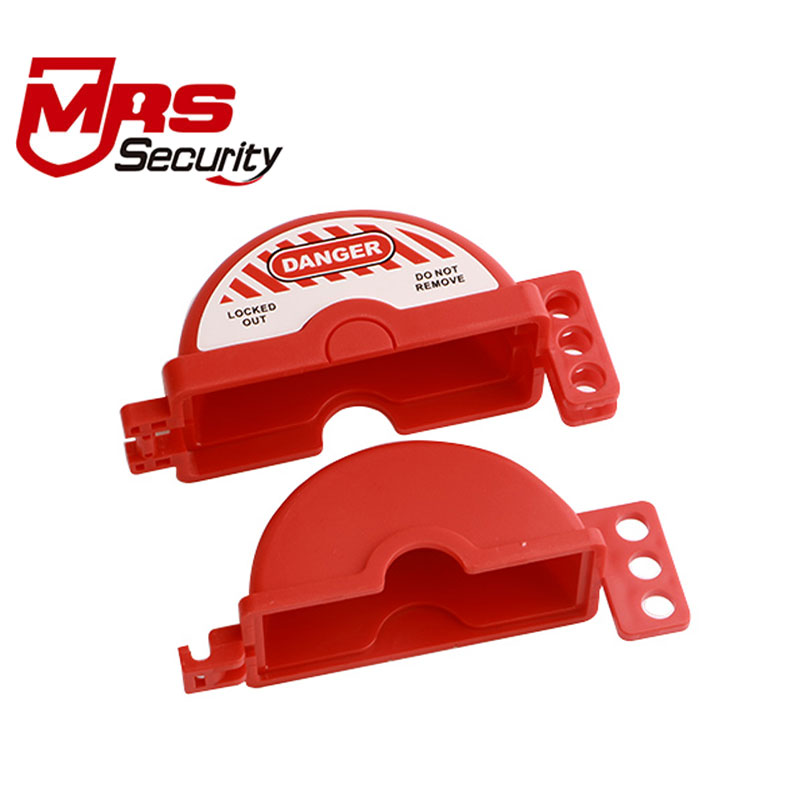

The two semicircles have different sizes, storage and carrying can be integrated into one

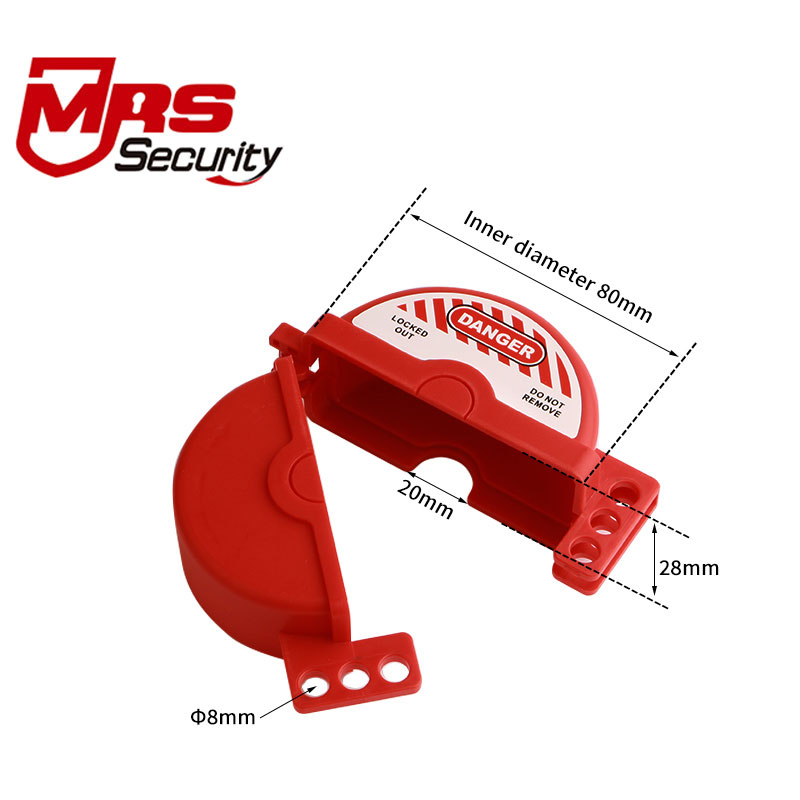

Lock aperture is 8mm

Get a Quote
Product Details
Technical Specifications

Product Name

Gate valve lockout

Product  Code

MZF01-07N

Material

Using engineering plastic ABS( ABS has hard and strong impact resistance, scratch resistance, dimensional stability, moisture resistance, corrosion resistance, easy processing, good transparency, environmental protection, non-toxic, odorless, easy dyeing, and electrical insulation.)

Color

The default color is red

Feature

seven different ball valve lock sizes can lock gate valves with hand-wheel diameters ranging from 25mm to 635mm

Customizable

If the quantity is large,colors can be customized. The lock body can be laser printed or customized with a logo.

Advice

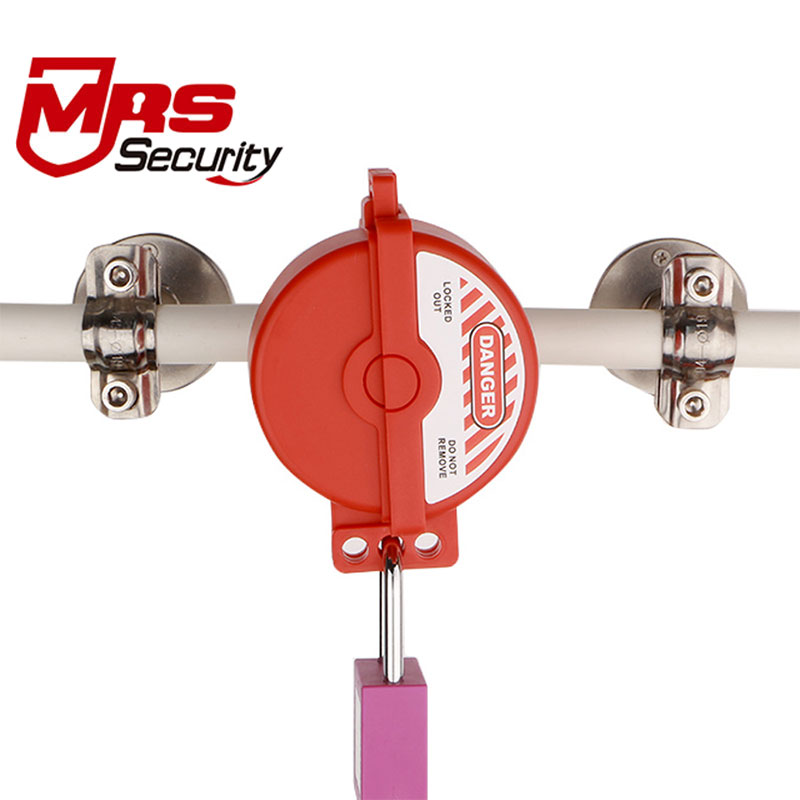

It is recommended to use it together with a padlock and safety sign to achieve locking purposes, and to prevent misoperation.

Service

OEM&Sample is available

Delivery Time

To be discussed

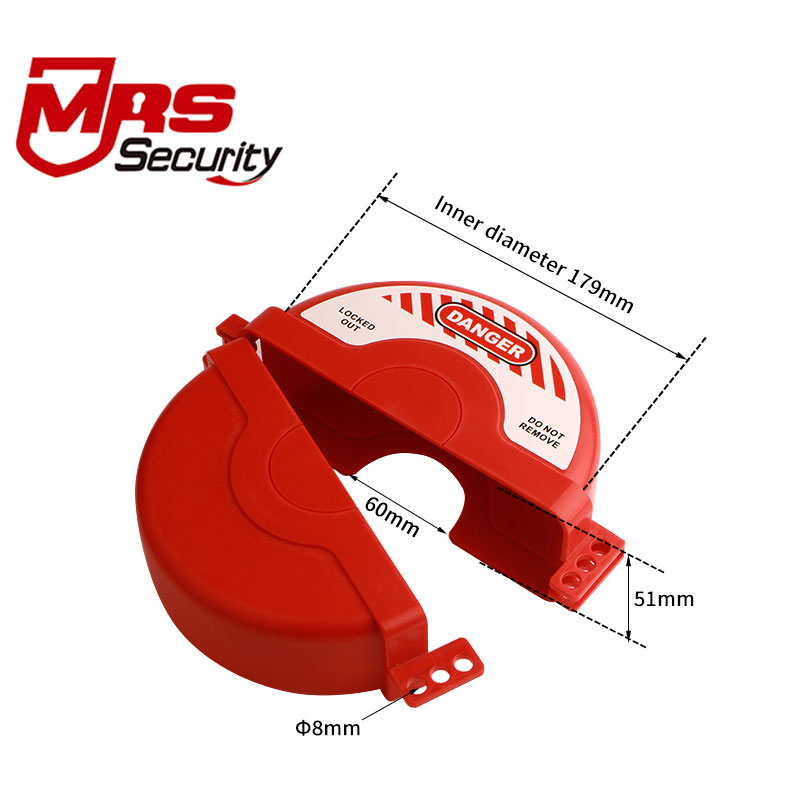

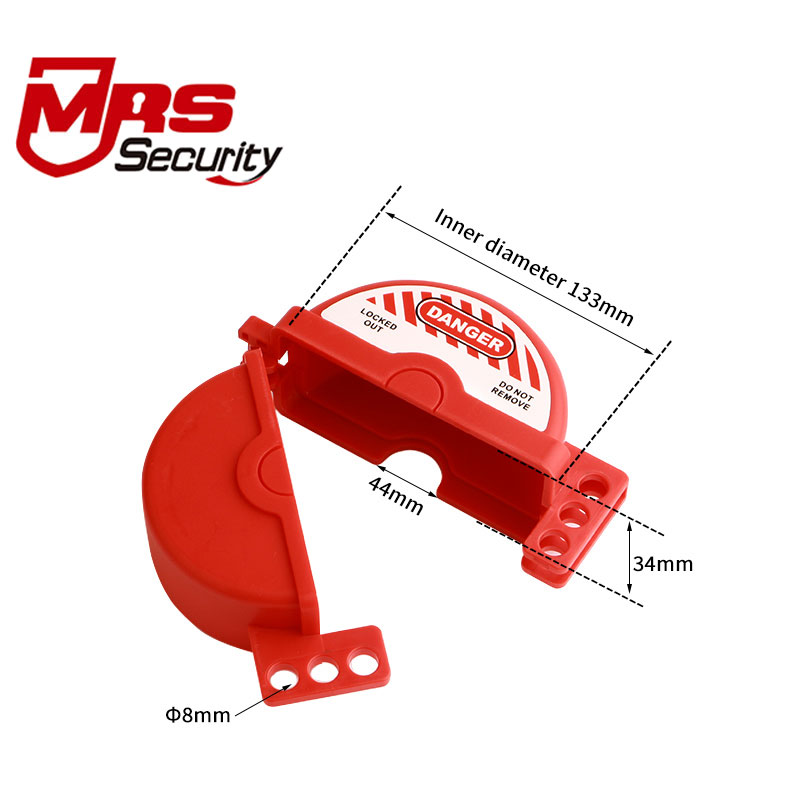

Model number

Scope of use

Thickness(B)

Aperture(C)

MZF01N

Suitable for hand-wheels with a diameter of 25mm to 64mm

28mm

19mm

MZF02N

Suitable for hand-wheels with a diameter of 64mm to 127mm

38mm

39mm

MZF03N

Suitable for hand-wheels with a diameter of 127mm to 165mm

50mm

64mm

MZF04N

Suitable for hand-wheels with a diameter of 165mm to 254mm

59mm

85mm

MZF05N

Suitable for hand-wheels with a diameter of 254mm to 330mm

76mm

95mm

MZF06N

Suitable for hand-wheels with a diameter of 330mm to 457mm

78mm

99mm

MZF07N

Suitable for hand-wheels with a diameter of 457mm to 635mm

63mm

135mm
