Product Name

Gate valve lockout

Product  Code

MZF01-05T

Material

Using engineering plastic PC( PC has high strength and elastic coefficient, high impact strength, wide temperature range of use, and good fatigue resistance; Good weather resistance; Excellent electrical characteristics; Good impact resistance and transparency)

Color

The default color is red

Feature

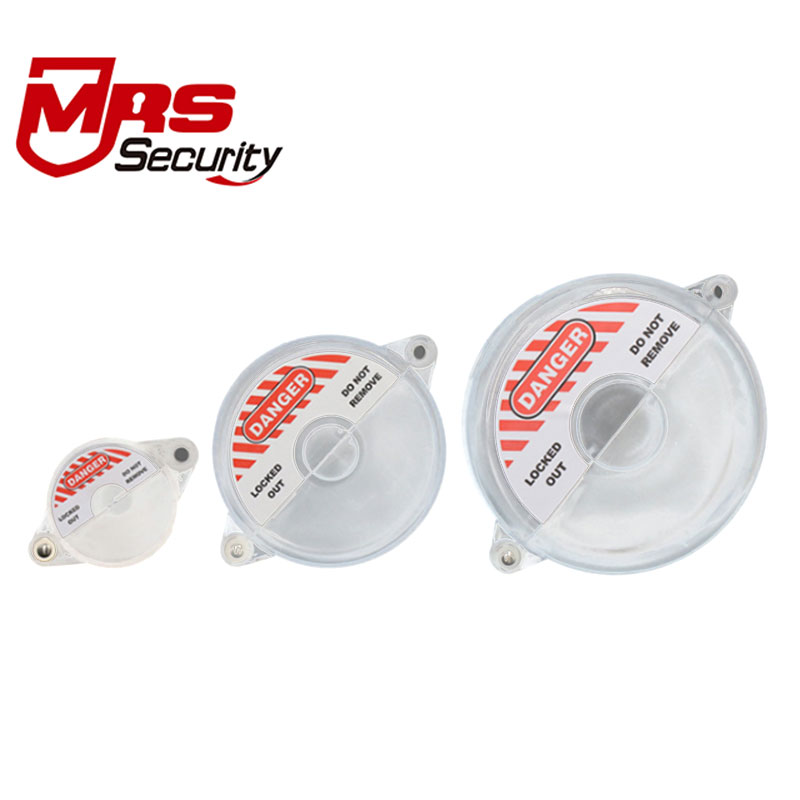

Five different ball valve lock sizes can lock gate valves with hand-wheel diameters ranging from 25mm to 330mm

Customizable

If the quantity is large,colors can be customized. The lock body can be laser printed or customized with a logo.

Advice

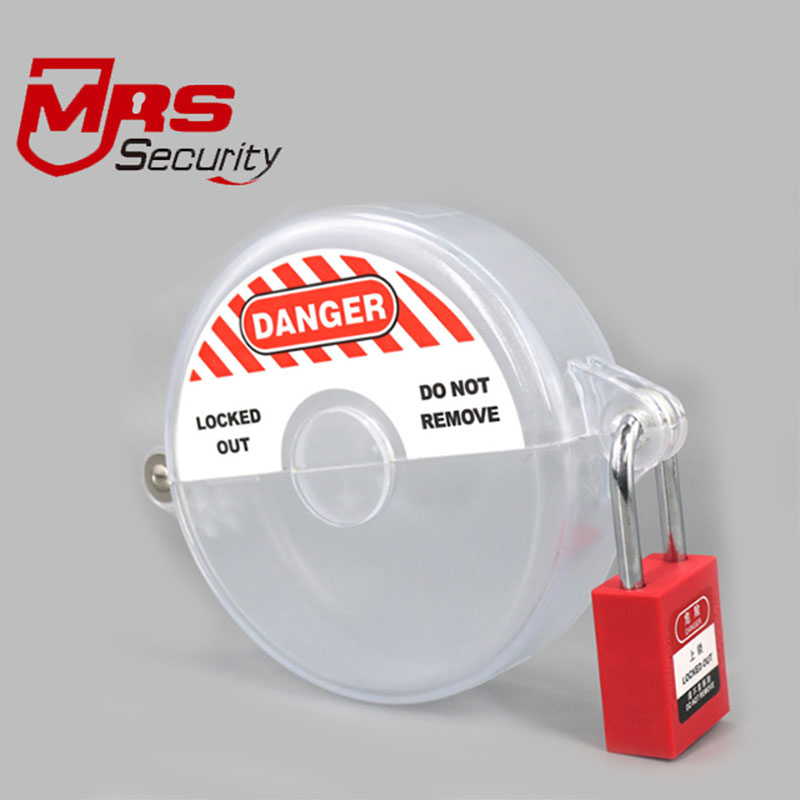

It is recommended to use it together with a padlock and safety sign to achieve locking purposes, and to prevent misoperation.

Service

OEM&Sample is available

Delivery Time

To be discussed

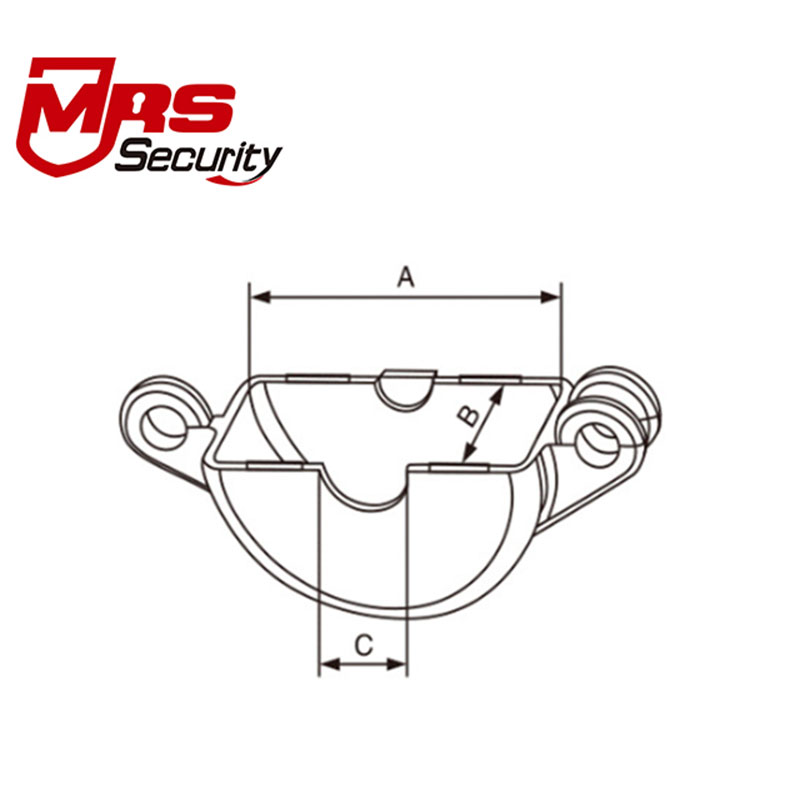

Model number

Scope of use

Thickness(B)

Aperture(C)

MZF01T

Suitable for hand-wheels with a diameter of 25mm to 64mm

30mm

20mm

MZF02T

Suitable for hand-wheels with a diameter of 64mm to 127mm

37mm

45mm

MZF03T

Suitable for hand-wheels with a diameter of 127mm to 165mm

44mm

63mm

MZF04T

Suitable for hand-wheels with a diameter of 165mm to 254mm

61mm

87mm

MZF05T

Suitable for hand-wheels with a diameter of 254mm to 330mm

68mm

105mm
