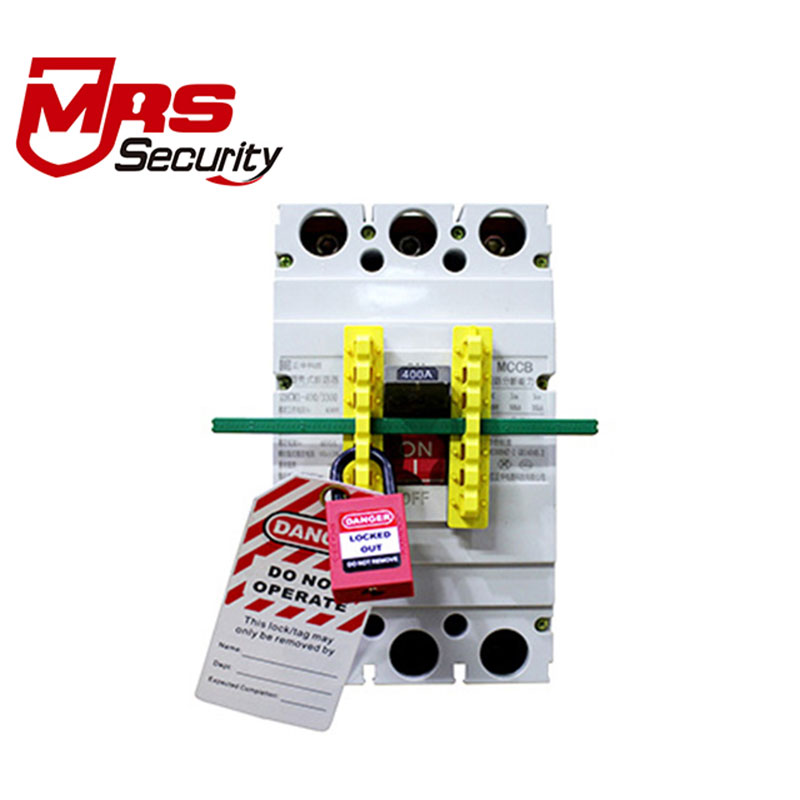

Molded Circuit Breaker Lockout MD29

FEATURES

Suitable for the complete locking of ultra large or irregularly shaped switches.

Made of engineering plastic PA

No tools required, easy to install, with self-adhesive tracks on the back of the base.

Get a Quote

Product Details

Technical Specifications

Product Name	Circuit Breaker Lockout
Product Code	MD29

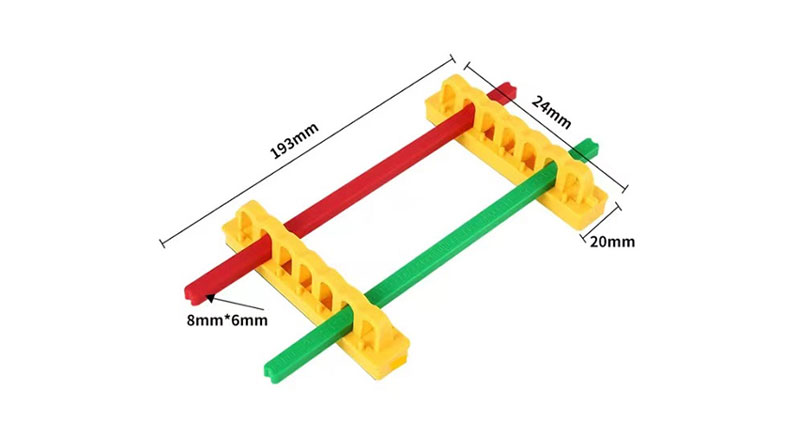

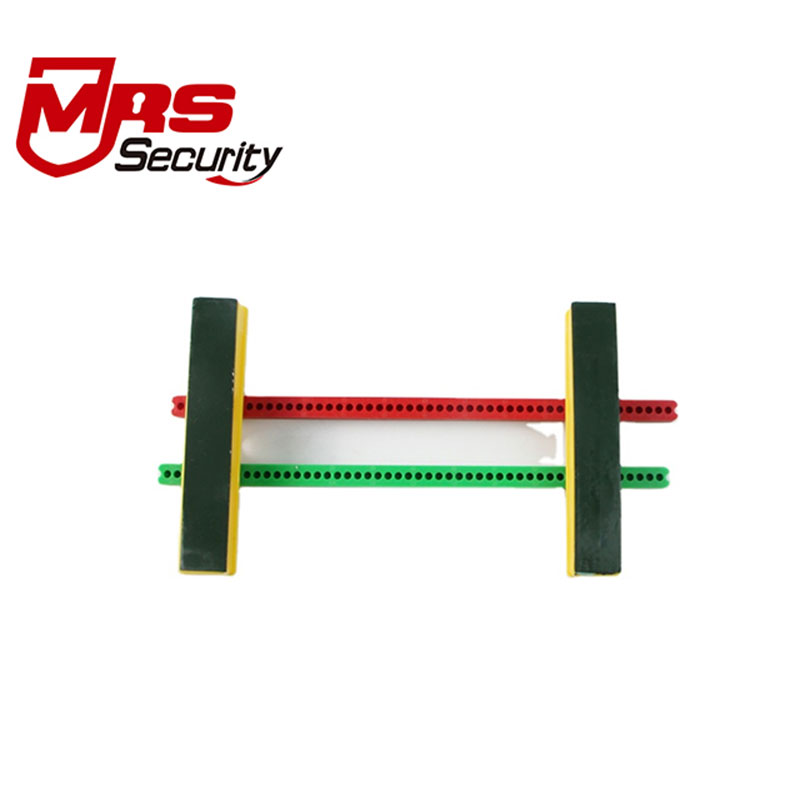

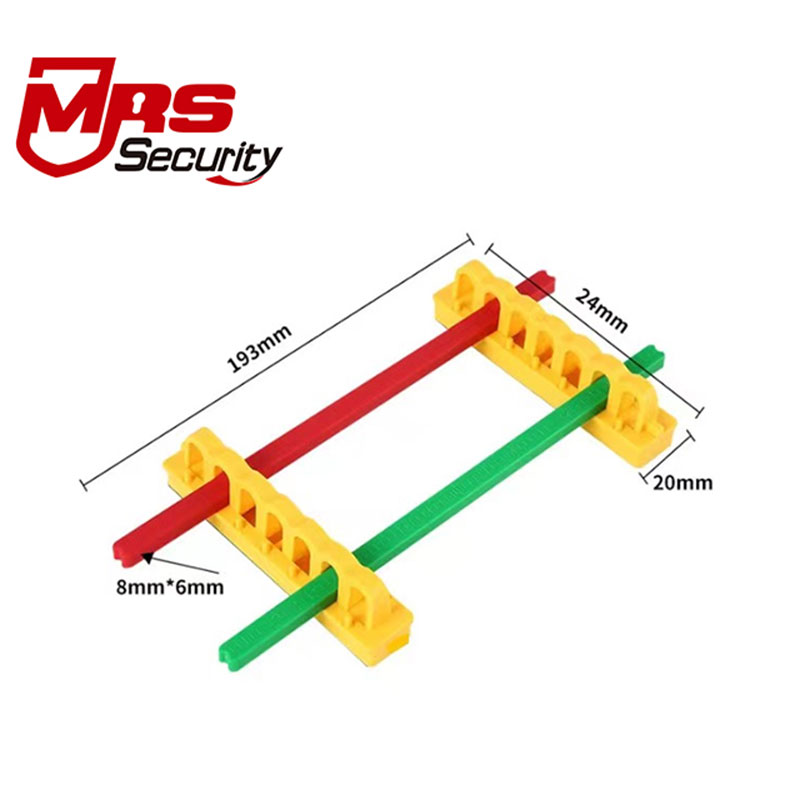

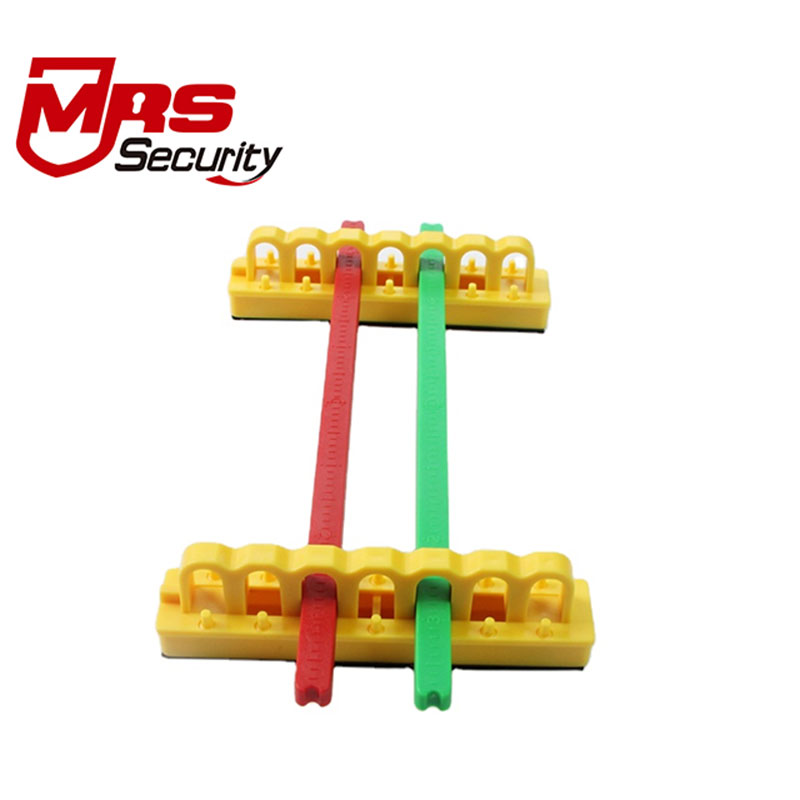

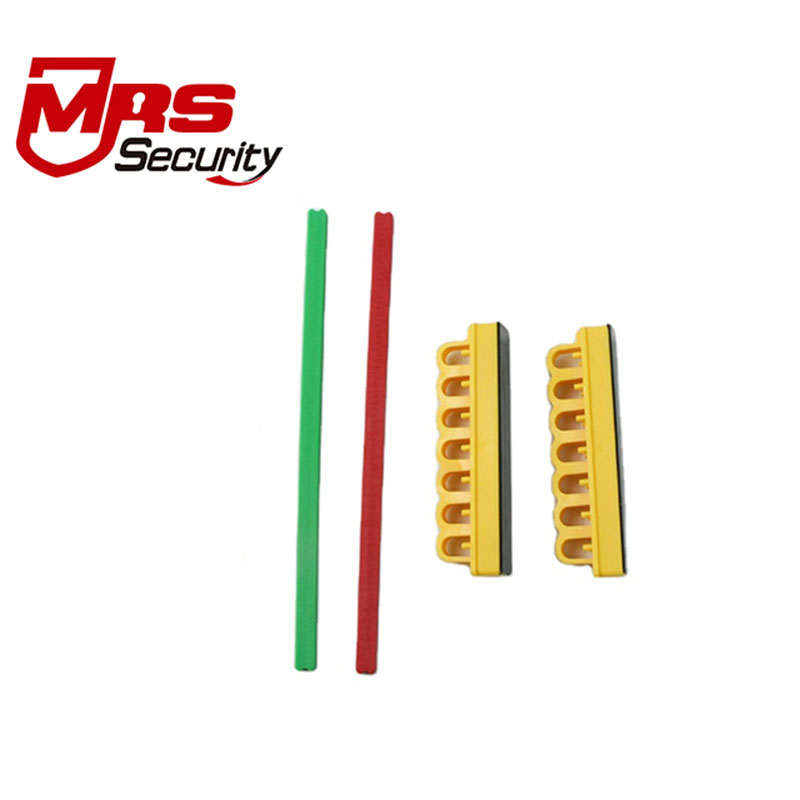

Sections	This circuit breaker lock consists of two yellow mounting bases, one red pole and one green pole. The pole holder can accommodate four poles, with a length of 190mm. The base has multiple holes and can be adjusted according to the equipment's condition
Material	Using engineering plastic PA6（It can withstand temperatures between -20 ° C and 120 °C. The PA material lock body is impact resistant, UV resistant, corrosion resistant, heat resistant, low temperature resistant, durable, lightweight, and non conductive.）
Color	The default color is red
Feature	No tools required, easy to install, with self-adhesive tracks on the back of the base.
Application	Suitable for the complete locking of ultra large or irregularly shaped switches.
Customizable	If the quantity is large, other colors can be customized. The lock body can be laser printed or customized with a logo.
Advice	It is recommended to use it together with the padlock and safety sign to achieve energy isolation and locking purposes, and to prevent misoperation.
Service	OEM&Sample is available
Delivery Time	To be discussed

Safety Lock Application Areas

Safety locks are widely used in various transportation, light industry, and building materials; Metallurgy and non-ferrous metals; Food, manufacturing, papermaking; Petroleum and chemical industry; Energy, electricity, and other fields.

Application Scope of Safety Locks

Applicable to

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.
