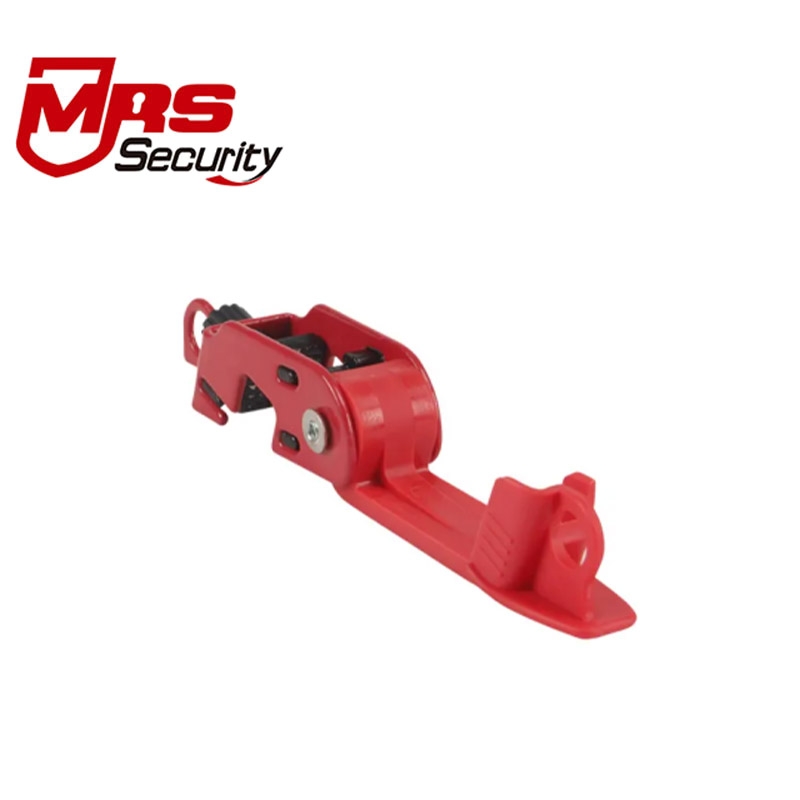

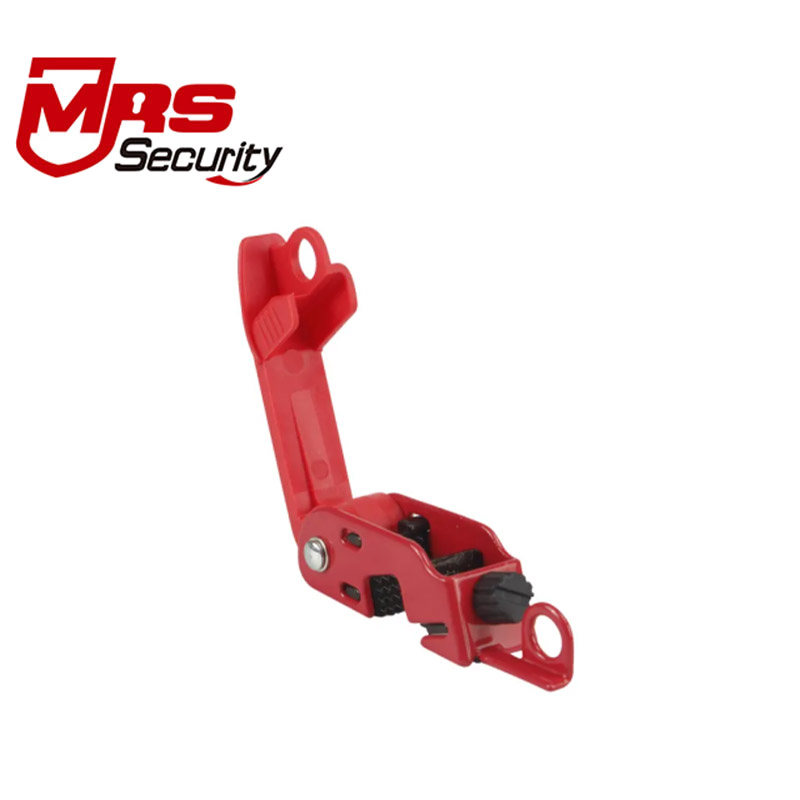

Miniature Circuit Breaker Lockout MD31

FEATURES

Lockable for various types of circuit breakers

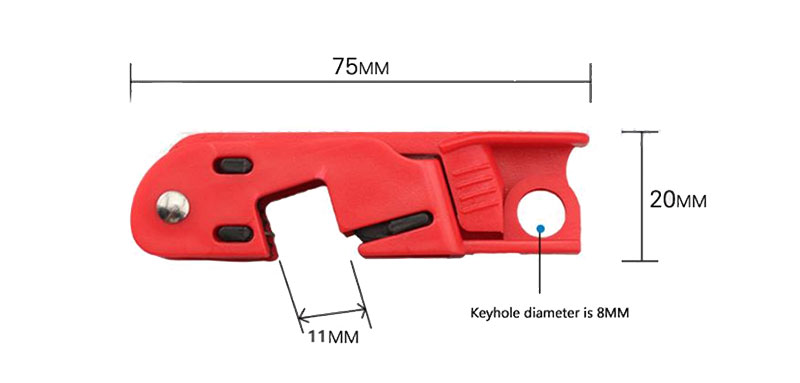

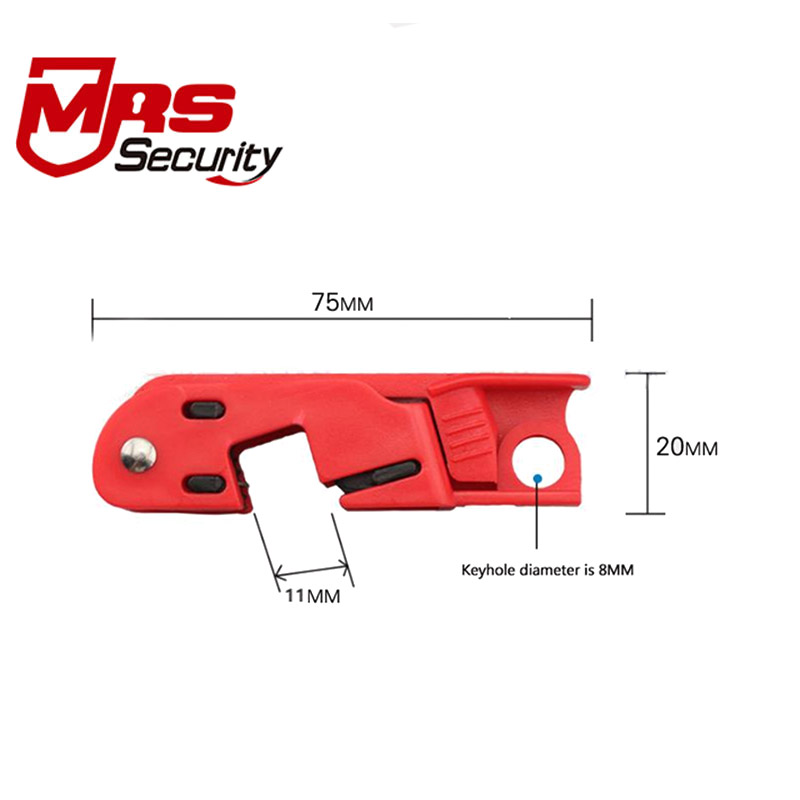

Suitable for circuit breakers with a handle thickness of 11mm or less.

Made of engineering plastic PA6 and Aluminum alloy

No tools required, easy to install, with built-in knob screws

Get a Quote

Product Details

Technical Specifications

Product Name	Circuit Breaker Lockout
Product Code	MD31
Material	The external foldable part is made of PA6 material, which can withstand temperatures between -20 ° C and 120 ° C. The PA material lock body is impact resistant, UV resistant, corrosion resistant, heat resistant, low temperature resistant, durable, lightweight, and non conductive.
Material	The internal lock body is made of aluminum alloy material, which is lightweight, high-strength, corrosion-resistant, and easy to use and maintain.
Color	The default color is red
illustrate	No tools required, with built-in knob screws

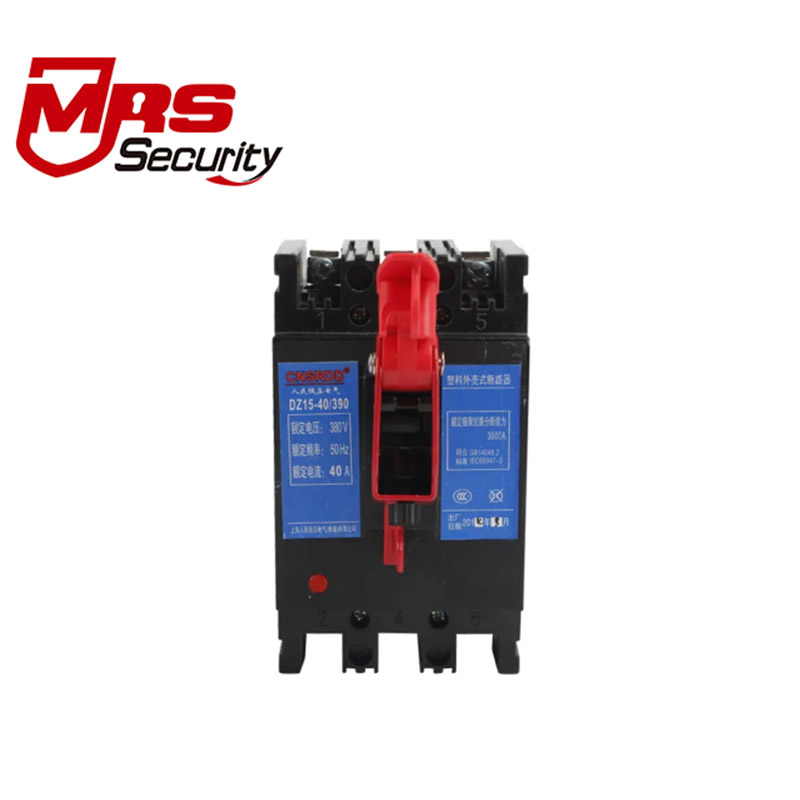

Application	Lockable for various types of circuit breakers, suitable for circuit breakers with a handle thickness of 11mm or less
Customizable	If the quantity is large, other colors can be customized. The lock body can be laser printed or customized with a logo.

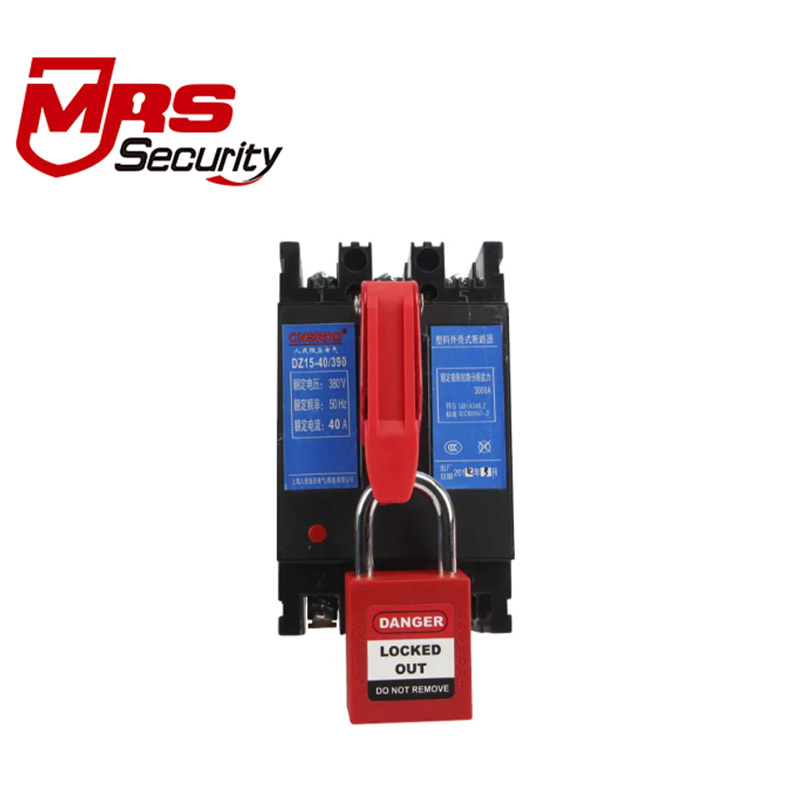

Advice	It is recommended to use it together with the padlock and safety sign to achieve energy isolation and locking purposes, and to prevent misoperation.
Service	OEM&Sample is available
Delivery Time	To be discussed

Safety Lock Application Areas

Safety locks are widely used in various transportation, light industry, and building materials; Metallurgy and non-ferrous metals; Food, manufacturing, papermaking; Petroleum and chemical industry; Energy, electricity, and other fields.

Application Scope of Safety Locks

Applicable to

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.
