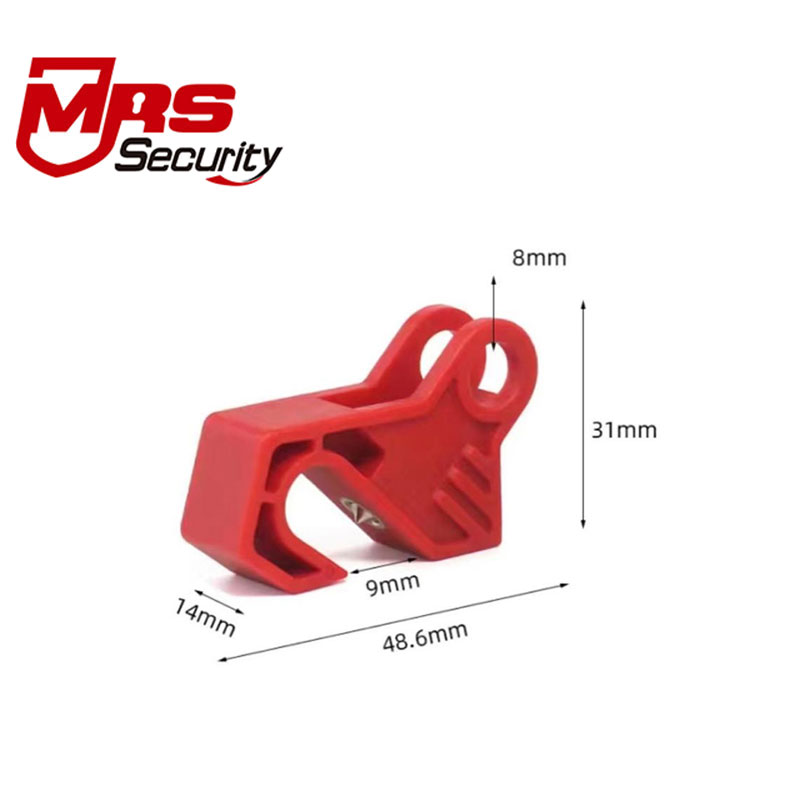

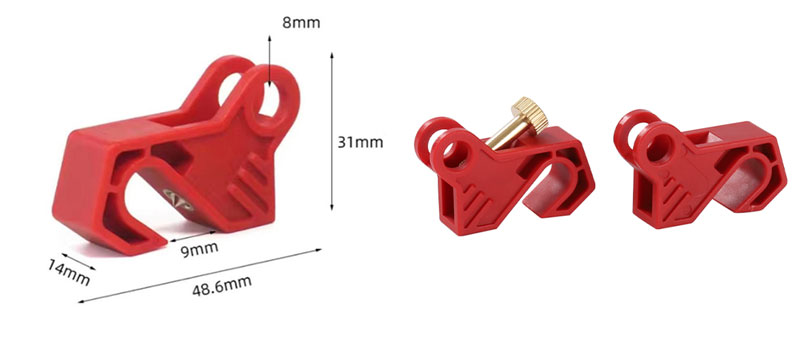

Safety Reinforced Circuit Breaker Lockout MD17-1
FEATURES

Lockable for various types of circuit breakers.

Suitable for circuit breakers with a handle thickness of 9mm or less.

Made of engineering plastic PA6.

Need a screwdriver for installation.

Get a Quote
Product Details
Product Description

It can lock various types of circuit breakers, suitable for circuit breakers with handle thickness less than 9mm

Made of engineering plastic PA material

Need a screwdriver for installation



Technical Specifications

Product  Name

Circuit Breaker Lockout

Product  Code

MD17-1

Material

Using engineering plastic PA6(It can withstand temperatures between -20 ° C and 120 °C. The PA material lock body is impact resistant, UV resistant, corrosion resistant, heat resistant, low temperature resistant, durable, lightweight, and non conductive.)

Color

The default color is red

illustrate

Need a screwdriver for installation

Application

Lockable for various types of circuit breakers, suitable for circuit breakers with a handle thickness of 9mm or less

Customizable

If the quantity is large, other colors can be customized, with 11 colors to choose from. The lock body can be laser printed or customized with a logo.



advice

It is recommended to use it together with the padlock and safety sign to achieve energy isolation and locking purposes, and to prevent misoperation.



service

OEM&Sample is available

Delivery Time

To be discussed





Safety Lock Application Areas

Safety locks are widely used in various transportation, light industry, and building materials; Metallurgy and non-ferrous metals; Food, manufacturing, papermaking; Petroleum and chemical industry; Energy, electricity, and other fields.



Application Scope of Safety Locks

Applicable to

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.
