High Reliability Circuit Breaker Lockout MD01
FEATURES

Circuit breaker lockout suitable for Miniature circuit breakers with a spatial distance of 15mm or less.

Made of engineering plastic PA6

No tools required

Pin inward

Get a Quote
Download
Product Details
Product Description

Suitable for miniature circuit breakers with hole spacing less than or equal to 15mm, suitable for most standard width single pole micro circuit breakers.

Made of engineering plastic PA6

No tools required, easy to install

Pin inward



Technical Specifications

Product Name

Circuit Breaker Lockout

Product  Code

MD01

Material

Using engineering plastic PA6(It can withstand temperatures between -20 ° C and 120 °C. The PA material lock body is impact resistant, UV resistant, corrosion resistant, heat resistant, low temperature resistant, durable, lightweight, and non conductive.)

Color

The default color is red

Feature

No tools required,user-friendly button style buckle design.

Application

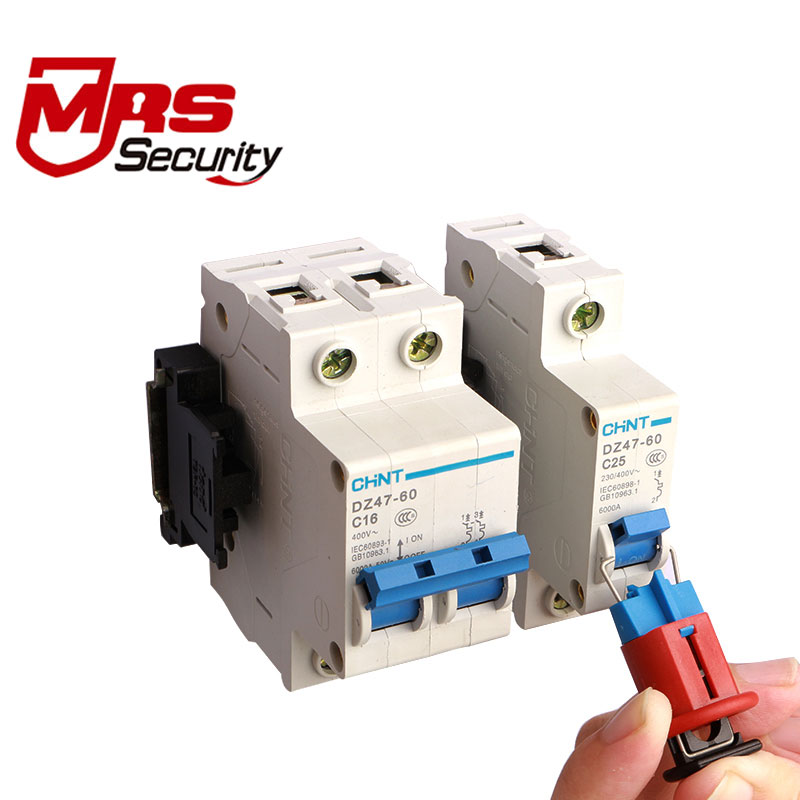

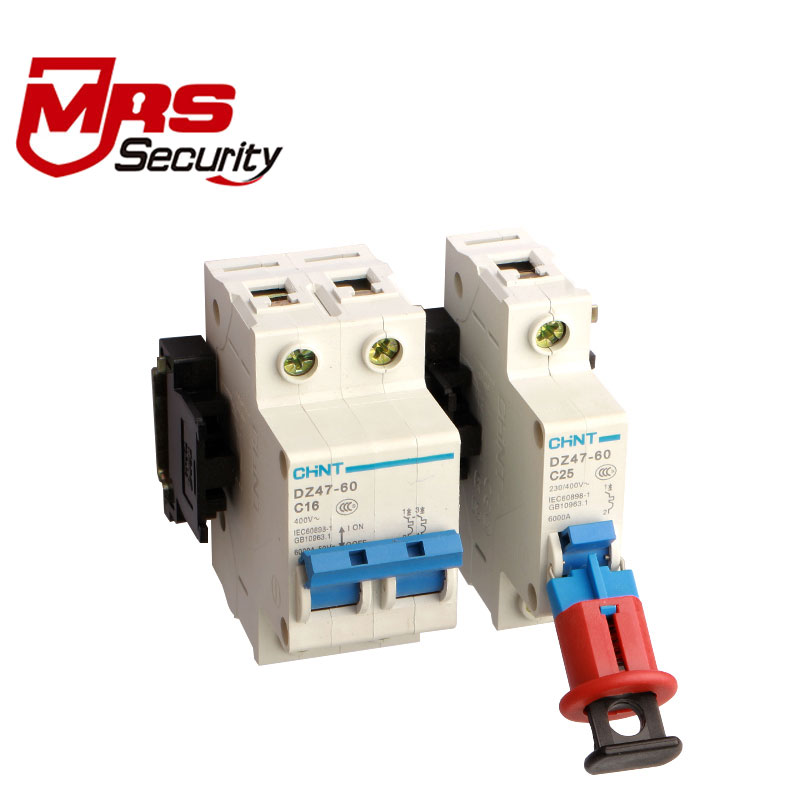

Lockable for Single pole circuit breakers, suitable for Miniature circuit breakers with a spatial distance of 15mm or less

Customizable

If the quantity is large, other colors can be customized, with 11 colors to choose from. The lock body can be laser printed or customized with a logo.

Advice

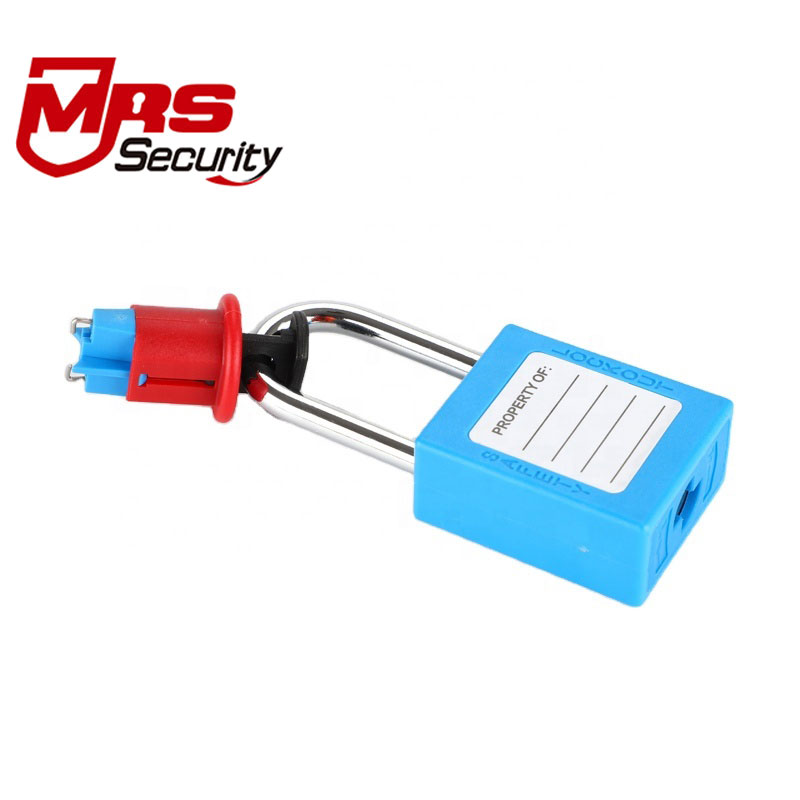

It is recommended to use it together with the padlock and safety sign to achieve energy isolation and locking purposes, and to prevent misoperation.

Service

OEM&Sample is available

Delivery Time

To be discussed



Safety Lock Application Areas

Safety locks are widely used in various transportation, light industry, and building materials; Metallurgy and non-ferrous metals; Food, manufacturing, papermaking; Petroleum and chemical industry; Energy, electricity, and other fields.



Application Scope of Safety Locks

Applicable to

1. Power switch: mainly including electrical switch circuit breakers, switch buttons, etc;

2. Air source switch: mainly including engine and pressure vessel, etc;

3. Pipeline valves: mainly including pipelines and storage tanks, gate valves, ball valves, etc;

4. Places that require warning, such as corrosive chemicals, storage tanks, oil drums, etc;

5. Other areas that require permission management, such as tool cabinet management, gas tank management, warehouse management, mobile device management, etc.
